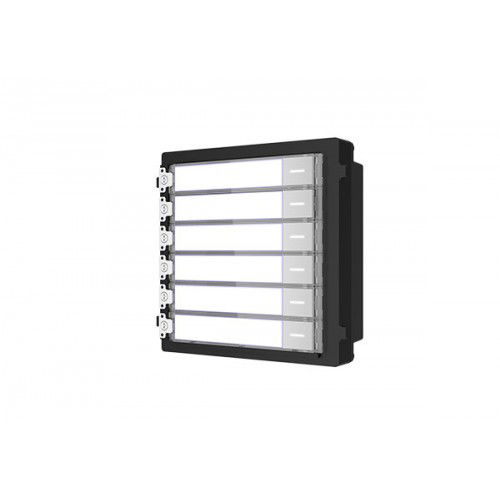

Name Tag Module to Suit Intercom Hikvision
Hikvision intercom name tag module for modular door stations. Ideal for video intercom installs at building entries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 6-Button Name Tag Module, Hikvision Intercom Nametag Module, KD8 Series Name Tag Module
Technical Specifications
- Model: DS-KD-KK
- Button Configuration: 6 physical call buttons with name tags
- Power Supply: Powered by the main intercom module
- Power Consumption: Maximum 2 W
- Ingress Protection: IP65
- Installation: Flush mounting or surface mounting
- Operating Temperature: -40°C to 55°C
- Operating Humidity: 10% to 95%
- Compatibility: Hikvision modular video intercom door stations, including DS-KD8003-IME1 series
- Mounting Requirement: Requires a compatible Hikvision mounting bracket
- Dimensions (H x L x W): 100.2mm x 33.7mm x 98.2mm
- Weight: 0.19 kg
Key Features
- Six individually labelled call buttons
- Designed for Hikvision modular video intercom door stations
- IP65-rated enclosure for outdoor installation environments
- Compatible with flush-mount and surface-mount configurations
- Powered through the main intercom module
- Modular design supports multi-resident building entry installations
Professional Installation Requirements
- Installation should be completed by a suitably qualified security or low-voltage communications installer, including mounting, module interconnection and configuration with the compatible Hikvision door station.
Applications
- Apartment and multi-residential building entrances
- Commercial building entry systems
- Residential developments requiring multiple resident call buttons
- Modular Hikvision video intercom installations
Environmental Benefits
- Low maximum power consumption of 2 W during operation
- Replaceable modular construction can reduce waste by allowing the name tag module to be serviced or replaced independently
- Durable IP65 construction may support longer service life and reduce replacement frequency
Warranty Information
Covered under Hikvision warranty terms applicable to the purchase contract. Hikvision Australia requires valid warranty documentation and proof of purchase for warranty returns; the specific warranty period should be confirmed with the authorised Australian distributor.
Available Now
Available through Hikvision and authorised Australian security, access-control and intercom distributors.
