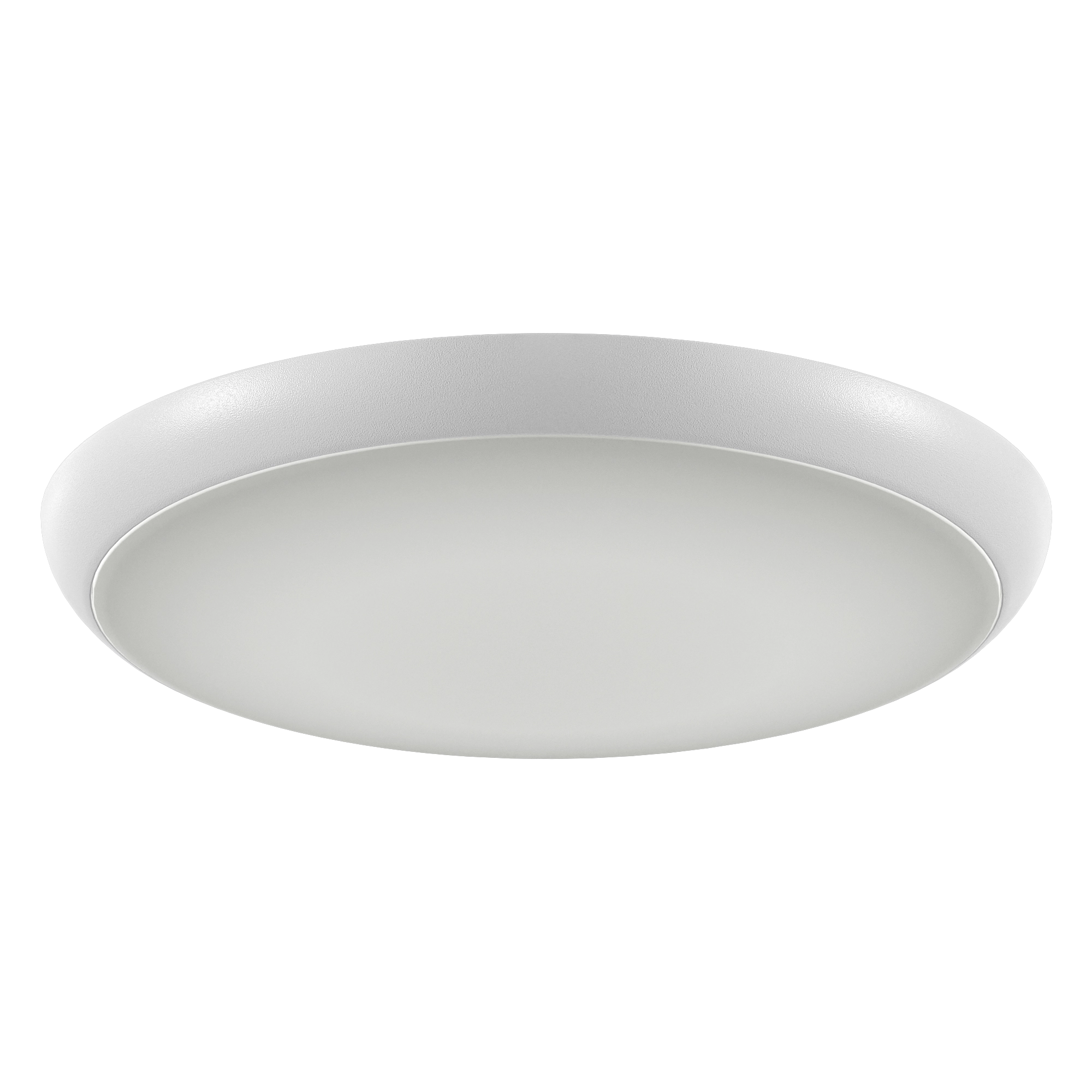

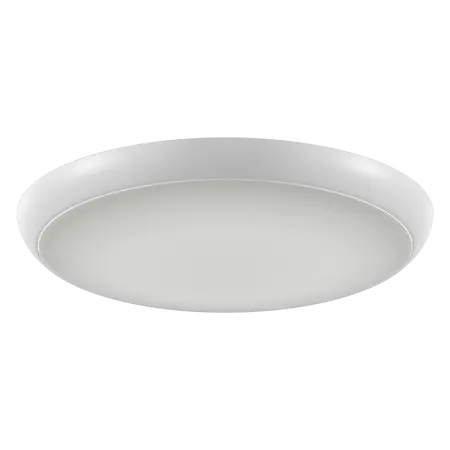

Nevada/Twister Ceiling Fan LED Light Kit Tri-Colour White Domus
Domus LED tri-colour light kit to suit Nevada and Twister ceiling fans, white.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Twister/Nevada Ceiling Fan Light Kit, Domus Ceiling Fan LED Light Kit, CCT Ceiling Fan Light Kit
Technical Specifications
- Model: CF-LIGHT-KIT
- Variant: 60193
- Compatibility: Domus TWISTER and NEVADA DC ceiling fans
- Finish: White
- Light Source: Integrated LED
- Rated Power: 24W
- Colour Temperature: 3000K / 4000K / 6500K
- Lumen Output: 2470 lm / 2500 lm / 2600 lm
- Lighting Efficiency: 150 lm/W
- Colour Rendering Index: CRI ≥80
- Dimming: Yes
- Construction: Fan-specific integrated light kit
- Dimensions (H x L x W): 65mm x 250mm x 250mm
- Weight: 0.65 kg
Key Features
- Compatible with Domus Twister and Nevada DC ceiling fans
- Integrated 24W LED light source
- Tri-colour selectable output with warm, neutral and cool white settings
- 3000K, 4000K and 6500K colour temperature options
- Dimmable through the compatible ceiling fan control system
- White finish designed to match compatible white ceiling fans
- High output of up to 2600 lumens
Professional Installation Requirements
- Installation and electrical connection should be completed by a licensed electrician in accordance with the manufacturer's installation instructions and AS/NZS 3000 wiring requirements.
Applications
- Adding integrated lighting to Domus Twister DC ceiling fans
- Adding integrated lighting to Domus Nevada DC ceiling fans
- Residential living rooms, bedrooms and other indoor living spaces
- Replacement or retrofit of a compatible Domus ceiling fan light kit
Standards & Compliance
- AS/NZS 60598.1 for general requirements and tests for luminaires
- AS/NZS 60598.2.1 for fixed general-purpose luminaires
- AS/NZS 60335.2.80 for safety requirements applicable to household and similar electric fans when installed as part of a ceiling fan assembly
- AS/NZS 3000 for electrical installation and wiring requirements
Environmental Benefits
- LED technology provides efficient illumination at 24W compared with conventional higher-wattage lighting sources
- Selectable colour temperature supports appropriate lighting levels for different indoor applications
- Integrated LED construction can reduce the need for frequent lamp replacement and associated waste
- High efficiency of up to 150 lm/W helps reduce operating energy consumption
Warranty Information
12-month replacement warranty for products not otherwise listed in Domus Lighting's warranty schedule, subject to purchase through an authorised distributor, licensed-electrician installation and compliance with installation instructions. Australian Consumer Law rights also apply.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers.
