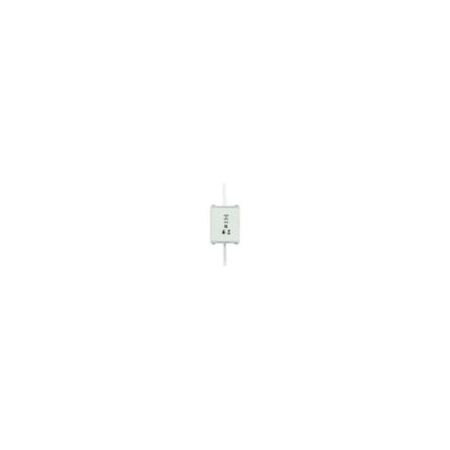

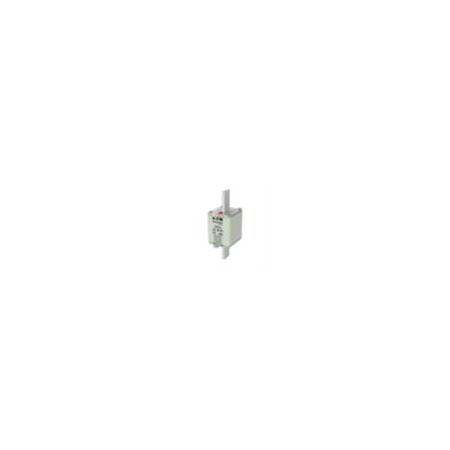

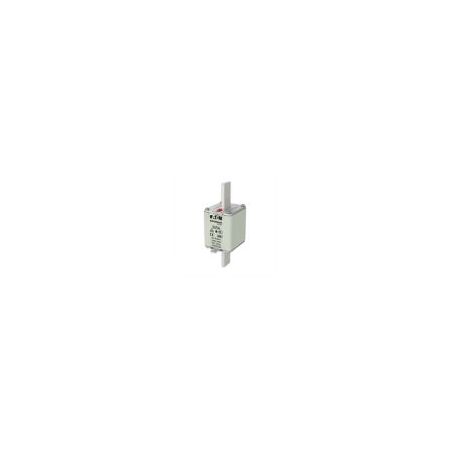

NH Fuse 355A 500V | 120 kA Breaking Capacity | gG/gL Class | Blade End Connection by Eaton
NH Fuse 355A with 500V rating and 120 kA breaking capacity—ideal for low voltage electrical protection in industrial and commercial systems. Built for secure connections with a live gripping lug and combination fuse status indicator for easy monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NH Fuse 355A 500V | 120 kA Breaking Capacity | gG/gL Class | Blade End Connection by Eaton
Brand: Eaton
SKU: 355NHG2B
Alternatively Known As: NH Fuse Size 2, 355 Amp NH Fuse, 500V NH Fuse, Bussmann NH Fuse, Low Voltage NH Fuse
Technical Specifications
- Amperage Rating: 355 A
- Voltage Rating: 500 V AC
- Breaking Capacity: 120 kA
- Class: gG/gL (General purpose fuse)
- Frequency Rating: 45 Hz to 62 Hz
- Fuse Size: NH02
- Fuse Type: Combination fuse with status indicator
- Connection Type: Blade end with live gripping lug
- Certifications: IEC 60269-1, IEC 60269-2, DIN 43620
- Dimensions (H x L x W): 71mm x 150mm x 54mm
- Weight: 0.62 kg
Key Features
- Live gripping lug for secure connection
- Combination fuse status indicator for easy fuse condition monitoring
- Blade end connection with square-body and knife blade contact
- Class C gL/gG fuse providing general purpose protection
- High breaking capacity of 120 kA at 500 V AC
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper fuse operation.
Applications
- Low voltage electrical protection in industrial and commercial electrical systems
- Protection of transformers, motors, and cables from overload and short circuit
- Use in switchboards and distribution panels requiring NH fuse size 2
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- CE marked for safety and environmental standards compliance
Warranty Information
Standard Eaton warranty applies; typically 1 year against manufacturing defects.
Available Now
The Eaton NH Fuse 355A 500V GG/GL Size 2 is available now for immediate purchase. Ideal for industrial and commercial electrical protection applications.
