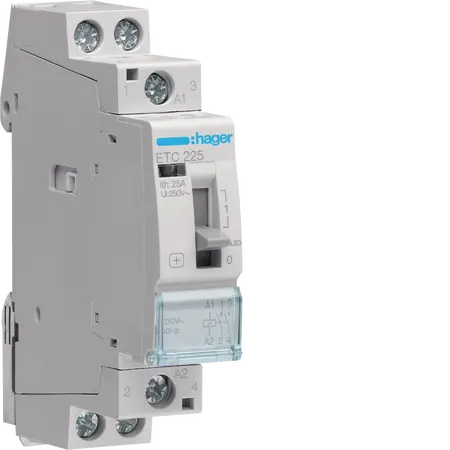

Night Day Contactor 25A 2NO Contacts 230V 50Hz Ui 250V Grey Hager

BRAND: :hager
SKU: ETC225
$90.80 List price: $113.10
+ −
30 Days Return Electricians Unlock Trade Access
Hager Night Day Contactor 25A 2NO Contacts 230V 50Hz Ui 250V Grey. Ideal for motor control and industrial switching.
Technical Specifications
  • Type of contacts: 2NO
  • Number of contacts: 2
  • Cross-section flexible conductor: 1 - 6 mm²
  • Cross-section rigid conductor: 1 - 10 mm²
  • Rated current: 25 A
  • Number of modules: 1
  • Frequency: 50 - 50 Hz
  • Rated impulse withstand voltage Uimp: 4000 V
  • Rated insulation voltage Ui: 250 V
  • Command voltage AC: 230 - 230 V
  • Operating temperature: -10 - 50 °C
  • Storage/transport temperature: -40 - 80 °C
  • Number of mechanical operations: 100000
  • Electric endurance in number of cycles: 30000
  • Total power loss under IN: 4 W
  • Inrush power absorbed: 10.70 VA
  • Height: 83 mm
  • Width: 17.85 mm
  • Depth: 64 mm
  • Number of NO contacts: 2
  • Number of NC contacts: 0
  • With switch for manual switch: Yes
  • Nominal tightening torque: 1.20 - 1.20 Nm
  • Dimensions (H x L x W): 83mm x 64mm x 17.85mm
  • Weight: 0.15 kg
Key Features
  • 25A current rating suitable for various applications
  • 2NO contacts for versatile switching
  • Manual switch for easy control
  • High mechanical and electrical endurance
Professional Installation Requirements
  • Installation by a qualified electrician is strongly recommended to ensure optimal and safe performance.
Applications
  • Residential: Home automation systems for time-based control
  • Commercial: Office lighting control systems
  • Industrial: Machinery control systems requiring timed operation
Standards & Compliance
  • Complies with AS/NZS 60947 standards for low-voltage switchgear and controlgear.
Environmental Benefits
  • Compact design minimizing material use
Warranty Information

1-year warranty covering manufacturing defects.

Available Now

The Hager Night & Day Contactor is available now for immediate purchase. Ideal for electrical control systems requiring secure and efficient operation.

Data Sheet (ETC225, 130 Kb) [Download]

Certificate (reach_declaration_ETC2256.pdf, 103 Kb) [Download]

Certificate (rohs_declaration_ETC2256.pdf, 104 Kb) [Download]

Data Sheet (ETC225.webp, 283 Kb) [Download]

Certificate (CONTACTORS.pdf, 197 Kb) [Download]

Certificate (DECLARATION_21_3000_09_21.pdf, 383 Kb) [Download]

Certificate (DECLARATION_21_1376_05_21.pdf, 221 Kb) [Download]
