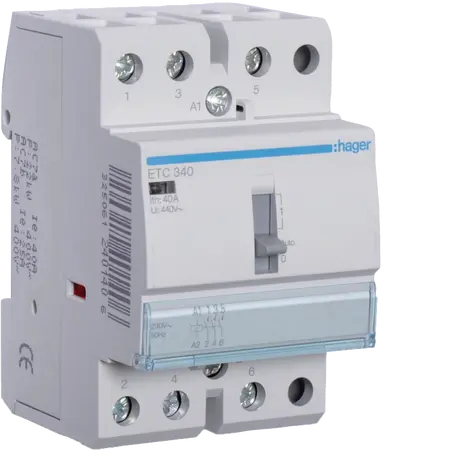

Night Day Contactor 40A 3NO 230VAC Ui 440V Grey Hager
Hager Night Day Contactor 40A 3NO 230VAC Ui 440V Grey. Ideal for motor control and industrial switching.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type of contacts: 3NO
- Rated current: 40 A
- Cross-section flexible conductor: 1.5 - 16 mm²
- Cross-section rigid conductor: 1.5 - 25 mm²
- Rated impulse withstand voltage Uimp: 4000 V
- Rated insulation voltage Ui: 440 V
- Command voltage AC: 230 - 230 V
- Number of modules: 3
- Operating temperature: -10 - 50 °C
- Mechanical operations: 100000
- Electric endurance cycles: 30000
- Total power loss under IN: 11.10 W
- Height: 85 mm
- Width: 54 mm
- Depth: 64 mm
- Dimensions (H x L x W): 85mm x 64mm x 54mm
- Weight: 0.25 kg
Key Features
- Efficient switching with 40A capacity
- Designed for 230V AC applications
- Compact size with a robust design
- 3 NO contacts for effective electrical connection
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended for optimal performance and safety.
Applications
- Residential electrical systems
- Commercial electrical installations
- Industrial electrical panels
Standards & Compliance
- Complies with AS/NZS standards for contactors
Environmental Benefits
- Long electric endurance reduces waste over time
- Efficient power consumption
Warranty Information
3 years warranty against manufacturing defects.
Available Now
Available for immediate purchase. Ideal for residential, commercial, and industrial electrical applications.
