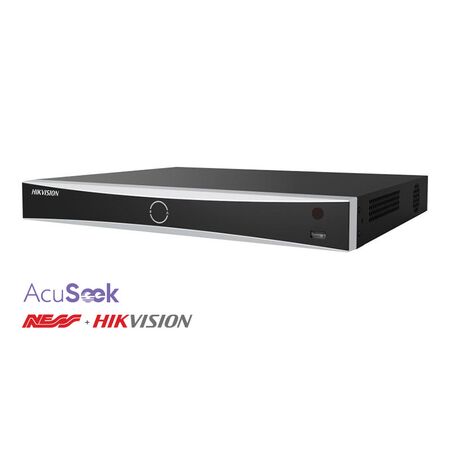

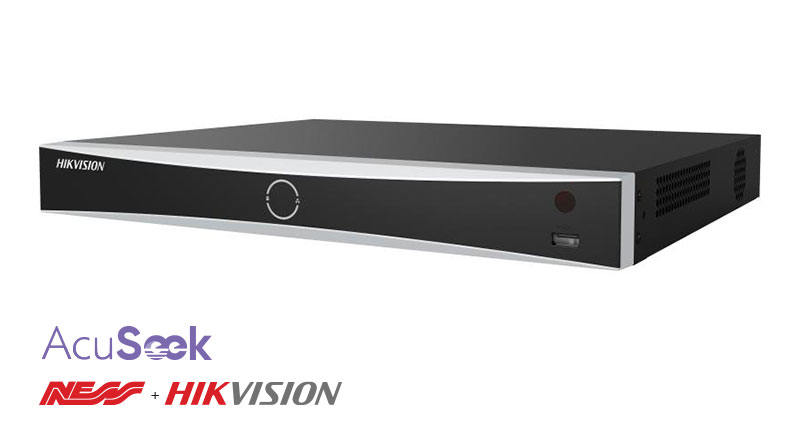

NVR 16 Channel VPro No HDD Hikvision
Hikvision VPro NVR features 16 channels and no HDD supplied. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision VPro NVR, Hikvision AcuSeek NVR, 16-Channel IP NVR, DS-7616NXI-I2/16P/VPRO
Technical Specifications
- IP Video Inputs: 16 channels
- PoE Ports: 16 × RJ45, IEEE 802.3af/at
- Incoming Bandwidth: 192 Mbps
- Outgoing Bandwidth: 256 Mbps
- Maximum Recording Resolution: Up to 32 MP
- Video Compression: H.265, H.265+, H.264, H.264+, MPEG4
- Video Outputs: 4K HDMI and 1080p VGA with independent output
- Storage: 2 × SATA interfaces, up to 20 TB per drive
- Hard Drive: Not included
- PoE Power Budget: Up to 200 W
- Power Supply: 100–240 V AC
- Power Consumption: ≤50 W without HDD
- Operating Temperature: -10°C to +55°C
- Operating Humidity: 10%–90% relative humidity
- Certifications: CE, CB, REACH, WEEE, UKCA, RCM, IC, LOA and KC
- Dimensions (H x L x W): 52mm x 371mm x 384mm
- Weight: 4 kg
Key Features
- Supports up to 16 IP cameras
- 16 integrated PoE ports provide camera power and data over a single cable
- Dual AI engines support AcuSeek natural-language search and AcuSearch image-based target search
- Facial recognition with up to 16 face libraries and 50,000 face images
- Supports ANPR, people counting, perimeter protection and video structuralisation with compatible cameras
- Supports up to 32 MP recording resolution
- Two 3.5-inch SATA bays support surveillance hard drives up to 20 TB each
- H.265+ compression helps reduce storage and network bandwidth requirements
- Supplied without a hard drive for customer-selected storage capacity
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or electrical installer. Mains power connection and fixed electrical work must comply with AS/NZS 3000, while network and security cabling should be installed in accordance with applicable Australian cabling requirements. Configure the NVR and connected cameras according to the manufacturer's instructions.
Applications
- Commercial CCTV surveillance systems
- Warehouses, logistics sites and industrial facilities
- Retail stores and shopping centres
- Car parks and vehicle monitoring with compatible ANPR cameras
- Schools, campuses, clinics and offices
- Medium to large residential security installations
Standards & Compliance
- AS/NZS 62676.1.1:2020 - Video surveillance system requirements
- AS/NZS 62676.4:2020 - Video surveillance system application guidelines
- AS/NZS 3000:2018 - Electrical installations, applicable to mains electrical installation
Environmental Benefits
- H.265+ video compression can reduce storage requirements and network traffic compared with less efficient codecs
- No hard drive is supplied, allowing the installer to select an appropriately sized, surveillance-rated drive and avoid unnecessary storage hardware
- REACH and WEEE certifications are listed by the manufacturer
- Two-bay storage design allows system capacity to be upgraded without replacing the NVR
Warranty Information
Warranty depends on the authorised Australian supply channel. Australian distributor documentation lists a 3-year back-to-base warranty for cameras and recorders; confirm the applicable Hikvision warranty terms at purchase and retain proof of authorised supply.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors, subject to distributor stock.
