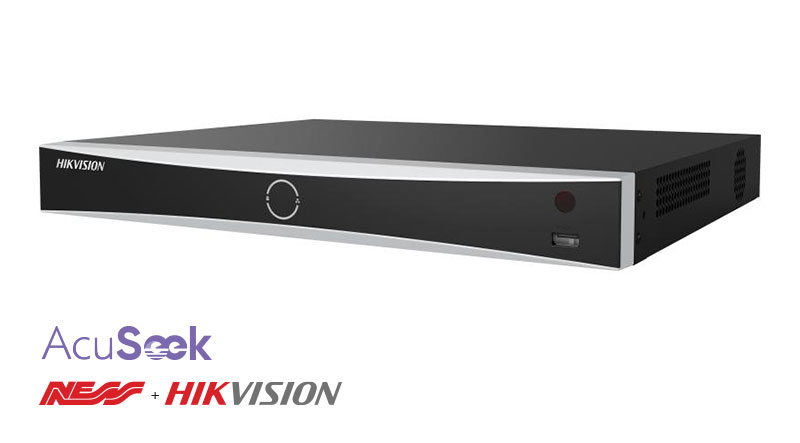

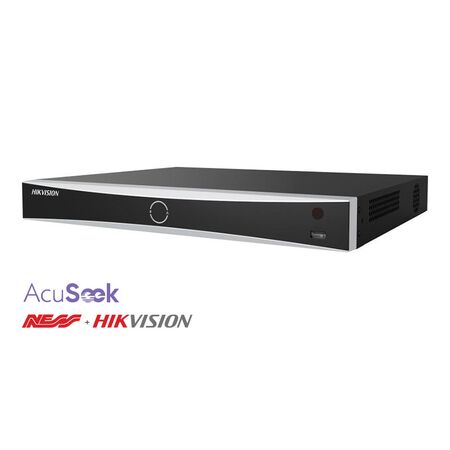

NVR 16 Channel VPro with 4TB HDD Hikvision
Hikvision VPro NVR features 16 channels and a 4TB HDD included. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision VPro AcuSeek NVR, 16-Channel PoE NVR, DS-7616NXI-I2/16P/VPro-4T
Technical Specifications
- Model: DS-7616NXI-I2/16P/VPro(STD)/AUS/4T
- Recorder Type: Network video recorder with AI analytics
- IP Camera Inputs: 16 channels
- PoE Ports: 16 × RJ45, IEEE 802.3af/at
- Incoming Bandwidth: 192 Mbps
- Outgoing Bandwidth: 256 Mbps
- Maximum Recording Resolution: Up to 32 MP
- Video Compression: H.265+, H.265, H.264+, H.264 and MPEG-4
- Video Outputs: 1 × HDMI up to 4K and 1 × VGA
- Storage: 1 × 4TB surveillance HDD included
- HDD Bays: 2 × SATA interfaces
- Maximum Storage: Up to 20TB per HDD
- Alarm I/O: 4 alarm inputs and 1 alarm output
- USB Ports: 1 × USB 2.0 front and 1 × USB 3.0 rear
- PoE Budget: Up to 200W
- Power Supply: 100–240V AC, 50/60Hz
- Power Consumption: Up to 50W excluding HDD
- Operating Temperature: -10°C to +55°C
- Chassis: 1U
- Certifications Listed: CE, CB, REACH, WEEE, UKCA, RCM, IC, LOA and KC
- Dimensions (H x L x W): 52mm x 371mm x 384mm
- Weight: 4 kg
Key Features
- Supports up to 16 IP security cameras
- Built-in 16-port PoE connectivity for direct camera connection
- AcuSeek natural-language video search with compatible cameras
- AcuSearch target-based search across recorded footage
- Supports human and vehicle analysis, facial recognition and perimeter protection functions
- Up to 32-channel 1080p decoding capability when AI functions are disabled
- H.265+ compression helps reduce storage and network bandwidth requirements
- Dual SATA bays support future storage expansion
- Independent HDMI and VGA video outputs
- Australian variant identified with a 4TB HDD configuration
Professional Installation Requirements
- Installation should be completed by a qualified CCTV or security technician. Connection to fixed mains wiring must be performed by a licensed electrician. Configure camera networking, PoE loads, storage and cybersecurity settings in accordance with the manufacturer’s instructions.
Applications
- Commercial CCTV surveillance systems
- Retail stores and shopping centres
- Warehouses and logistics facilities
- Office buildings and schools
- Industrial and manufacturing sites
- Residential and multi-dwelling security installations
- Medium-sized security systems requiring up to 16 PoE cameras
Standards & Compliance
- AS/NZS 62368.1: applicable safety standard for audio, video, information and communication technology equipment; verify the edition and declaration for the exact Australian SKU
- RCM certification is listed by Hikvision for the Australian VPro model range
Environmental Benefits
- H.265+ video compression can reduce storage capacity and network bandwidth requirements compared with older compression formats
- REACH and WEEE certifications are listed for the product range
- Expandable dual-HDD architecture can extend service life and reduce replacement waste
- Surveillance-grade storage and replaceable HDD design support long-term system maintenance
Warranty Information
3-year Australian manufacturer warranty is commonly offered for Hikvision cameras and NVRs purchased through authorised Australian distribution channels; confirm coverage and conditions for the exact DS-7616NXI-I2/16P/VPro/4T SKU.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors.
