Trade Discount 25%

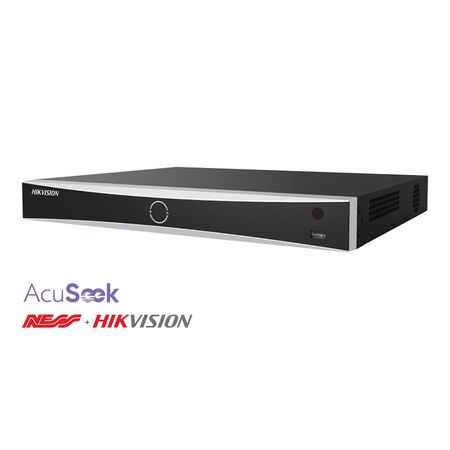

NVR 16 Channel VPro with 6TB HDD Hikvision
Hikvision VPro NVR features 16 channels and a 6TB HDD included. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision VPro NVR, 16-Channel PoE NVR, 16-Channel CCTV Network Video Recorder, DS-7616NXI-I2/16P/VPro/6T
Technical Specifications
- Model: DS-7616NXI-I2/16P/VPro(STD)/AUS/6T
- Video Input: 16 IP camera channels
- PoE Ports: 16 RJ-45 ports
- PoE Standard: IEEE 802.3af/at
- PoE Budget: Up to 200 W
- Incoming Bandwidth: 192 Mbps
- Outgoing Bandwidth: 256 Mbps
- Video Compression: H.265+, H.265, H.264+, H.264 and MPEG4
- Recording Resolution: Up to 32 MP
- Video Output: Independent HDMI and VGA outputs
- HDMI Output: Up to 4K resolution
- Storage: 6TB pre-installed HDD
- HDD Bays: 2 SATA interfaces, up to 20TB per drive
- Playback: 16-channel synchronous playback
- Network Interface: 1 x 10/100/1000 Mbps Ethernet
- Alarm I/O: 4 inputs and 1 output
- USB: 1 x USB 2.0 front and 1 x USB 3.0 rear
- Power Supply: Up to 180 W
- Power Consumption: Up to 50 W excluding HDD
- Operating Temperature: -10°C to 55°C
- Chassis: 1U
- Certifications and Marks: RCM, CE, CB, REACH, WEEE and UKCA
- Dimensions (H x L x W): 52mm x 371mm x 384mm
- Weight: 4 kg
Key Features
- 16-channel IP video recording for CCTV and security systems
- 16 integrated PoE ports for direct connection of compatible IP cameras
- AcuSeek and AcuSearch functions for faster video and target searching
- Guanlan AI-based analytics with facial recognition, ANPR, people counting and perimeter protection support
- H.265+ compression can reduce storage requirements compared with conventional H.264 recording
- Independent 4K HDMI and VGA video outputs
- Two internal SATA bays for storage expansion
- Hik-Connect and remote network management support
- Supplied with a 6TB hard disk drive in the Australian 6T variant
Professional Installation Requirements
- Installation should be completed by a suitably qualified security or communications installer. Mains connection, structured cabling and commissioning must comply with applicable Australian state or territory requirements, including AS/NZS 3000 where electrical installation work is involved.
Applications
- Commercial CCTV surveillance systems
- Retail and small-to-medium business security installations
- Warehouse, factory and logistics-site monitoring
- Education, healthcare and public-building surveillance
- Multi-camera residential security systems
- Remote video monitoring and incident investigation
Standards & Compliance
- AS/NZS 62676.1.1:2020 - Video surveillance systems for use in security applications, system requirements
- AS/NZS 62676.2.1:2020 - Video surveillance transmission protocols
- AS/NZS 62676.4:2020 - Video surveillance system application guidelines
- AS/NZS 3000:2018 - Electrical installations, applicable to associated mains electrical installation work
Environmental Benefits
- H.265+ video compression can reduce required recording storage and associated data-handling energy compared with less efficient codecs
- REACH and WEEE declarations support responsible materials management and end-of-life handling
- Expandable dual-drive storage can extend useful system life and reduce premature equipment replacement
- Long-term recording retention can be achieved with less physical storage capacity than older compression technologies
Warranty Information
Australian distributor warranty terms commonly specify a 3-year back-to-base manufacturer warranty for Hikvision NVRs. Hikvision's separate 5-year programme applies only to listed premium series such as DeepinMind and Ultra NVRs, so the exact warranty for the VPro 6TB Australian variant should be confirmed with the supplying authorised distributor.
Available Now
Available through Hikvision and authorised Australian security, CCTV and communications distributors; confirm current stock and the Australian 6TB variant before ordering.
