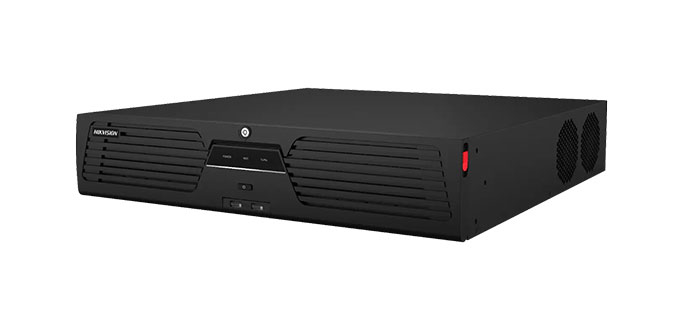

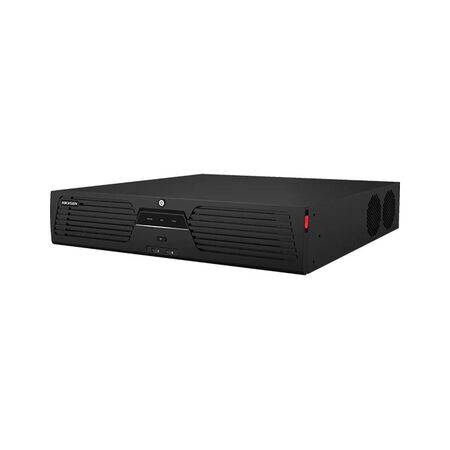

NVR 32 Channel 8 SATA M-Series No HDD Hikvision
Hikvision M-Series NVR features 32 channels, 8 SATA and no HDD supplied. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 32-Channel M-Series NVR, Hikvision DS-9632NI-M8 8K NVR, 32-Channel CCTV Network Video Recorder
Technical Specifications
- Model: DS-9632NI-M8
- IP Video Inputs: 32 channels
- Incoming Bandwidth: 320 Mbps
- Outgoing Bandwidth: 400 Mbps
- Video Compression: H.265+, H.265, H.264+ and H.264
- Decoding Capability: Up to 2-channel 32 MP, 10-channel 8 MP, 20-channel 4 MP or 40-channel 1080p
- Video Output: 8K HDMI output, secondary 4K HDMI output and two VGA outputs
- Storage Interfaces: 8 hot-plug SATA interfaces and 1 eSATA interface
- Maximum Storage: Up to 14 TB per HDD
- RAID: RAID 0, 1, 5, 6 and 10
- Network Interfaces: 2 x 10/100/1000 Mbps RJ-45 Ethernet
- Alarm Interfaces: 16 alarm inputs and 9 alarm outputs
- USB Interfaces: 2 x USB 2.0 front and 2 x USB 3.0 rear
- Power Supply: 100–240 VAC, 50–60 Hz
- Power Consumption: 50 W maximum without HDD
- Operating Temperature: -10°C to 55°C
- Operating Humidity: 10% to 90% RH
- Chassis: 2U rack-mount chassis
- HDD Included: No
- Manufacturer Certifications: CE and FCC
- Dimensions (H x L x W): 93mm x 465mm x 445mm
- Weight: 10 kg
Key Features
- Supports up to 32 IP cameras
- 8K video output for high-resolution surveillance monitoring
- Eight hot-plug SATA bays for high-capacity storage expansion
- RAID 0, 1, 5, 6 and 10 support for storage performance and redundancy
- H.265+ compression helps reduce storage and network bandwidth requirements
- Dual Gigabit Ethernet interfaces
- Supports ANPR, people counting, fisheye and other specialist camera functions
- Independent main and auxiliary video outputs
- Suitable for enterprise, commercial and industrial CCTV systems
Professional Installation Requirements
- Installation and commissioning should be performed by a suitably qualified CCTV/security systems installer. Mains connection must be completed by a licensed electrical contractor where required, with network cabling, earthing, ventilation and rack installation completed in accordance with applicable Australian requirements.
Applications
- Commercial CCTV surveillance systems
- Enterprise and multi-site security installations
- Shopping centres, warehouses and industrial facilities
- Schools, hospitals and public infrastructure
- Transport hubs, airports and large campuses
- High-resolution IP camera recording and monitoring systems
Standards & Compliance
- AS/NZS 62368.1:2022 is the applicable Australian/New Zealand electrical safety standard for audio, video and information and communication technology equipment; verify the model-specific Australian declaration of conformity and RCM status before installation.
Environmental Benefits
- H.265+ compression can reduce required storage capacity and network bandwidth compared with older compression formats
- RAID support can improve storage resilience and extend system service life by reducing the impact of individual drive failure
- No HDD is supplied, allowing the installer to select an appropriate surveillance-rated drive capacity and replace individual drives rather than the complete recorder
- Long-life rack-mounted architecture can reduce electronic equipment replacement and waste over the system lifecycle
Warranty Information
A three-year back-to-base manufacturer warranty is commonly provided for Hikvision IP cameras and recording devices through authorised Australian distribution channels. Confirm the applicable warranty period and conditions with the supplying authorised distributor; the Hikvision five-year premium NVR warranty applies to specified DeepinMind and Ultra series, not generally to the M-Series.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors, subject to regional model availability and distributor stock.
