NVR 4 Channel M-Series with 4TB HDD Hikvision

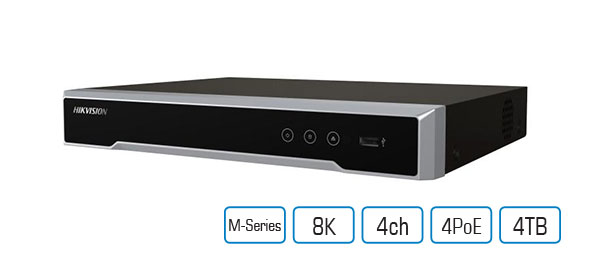

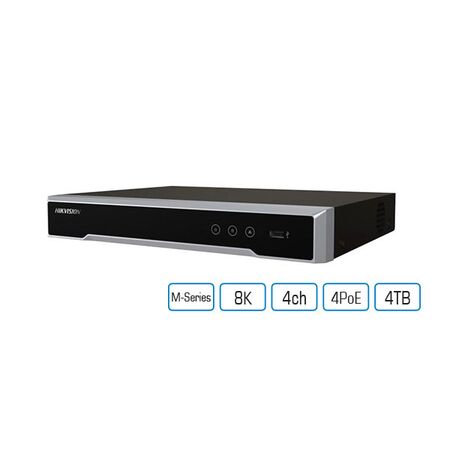

Hikvision M-Series NVR features 4 channels and a 4TB HDD included. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 4-Channel M-Series NVR, Hikvision 4-Channel 4K PoE Network Video Recorder, DS-7604NI-M1/4P(STD)/AUS/4T
Technical Specifications
- Model: DS-7604NI-M1/4P
- IP Video Inputs: 4 channels
- Incoming Bandwidth: 40 Mbps
- Decoding Capability: 4-channel at 8 MP, 30 fps
- Video Compression: H.265+, H.265, H.264+ and H.264
- HDMI Output: Up to 8K, 7680 × 4320 at 30 Hz
- VGA Output: Up to 1920 × 1080 at 60 Hz
- PoE Ports: 4 independent RJ-45 ports
- PoE Standard: IEEE 802.3af/at
- Network Interface: 1 × RJ-45 Gigabit Ethernet
- Storage: 4TB surveillance HDD included
- HDD Interface: 1 × SATA, supporting up to 16TB per HDD
- Audio: 1-channel RCA audio input and output
- Alarm Interfaces: 4 inputs and 1 output
- Power Supply: 48V DC, 1.875A
- Power Consumption: Up to 15W without HDD and with PoE disabled
- Operating Temperature: -10°C to 50°C
- Operating Humidity: 10% to 90% RH
- Manufacturer Certification: CE; EN 55032, EN IEC 61000-3-2, EN 61000-3-3 and EN 50130-4
- Dimensions (H x L x W): 48mm x 240mm x 320mm
- Weight: 1.8 kg
Key Features
- Four-channel network video recording for IP CCTV systems
- Four integrated PoE ports provide camera power and data over a single Ethernet cable
- Supports high-resolution IP cameras up to 32MP recording resolution
- 8K HDMI display output with independent HDMI and VGA outputs
- H.265+ compression helps reduce storage and bandwidth requirements
- 4TB surveillance-grade hard disk supplied
- Supports four-channel synchronous playback
- Hik-Connect remote viewing and management compatibility
- Compact 1U chassis suitable for desktop or equipment-room installation
Professional Installation Requirements
- Installation should be carried out by a suitably qualified CCTV or security-system technician. Any 230V AC connection for the supplied power adaptor must comply with applicable Australian electrical requirements.
Applications
- Residential CCTV surveillance systems
- Small business and retail security installations
- Office, workshop and warehouse monitoring
- IP camera systems requiring integrated PoE connectivity
- Local video recording with remote viewing and playback
Standards & Compliance
- AS/NZS 62368.1 is the relevant safety standard family for applicable audio, video and information and communication technology equipment; verify product-specific RCM and Australian Responsible Supplier registration for the supplied SKU.
- AS/NZS 3820 may apply as an essential safety requirement for in-scope electrical equipment where no more specific Australian or New Zealand standard is applicable.
Environmental Benefits
- H.265+ compression can reduce storage requirements and associated network and storage energy demand compared with older codecs.
- A replaceable surveillance HDD and single-bay storage design can extend service life by allowing storage replacement or upgrading without replacing the recorder.
- Long-term video retention and remote monitoring can reduce the need for repeated site visits and associated travel.
Warranty Information
3-year Australian manufacturer warranty when supplied as authorised Australian product; confirm the warranty terms with the supplying distributor, as Hikvision extended five-year coverage is limited to specified premium product series.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors, subject to current stock availability.
