Trade Discount 25%

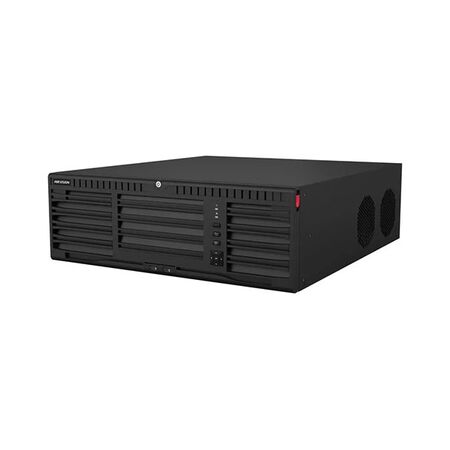

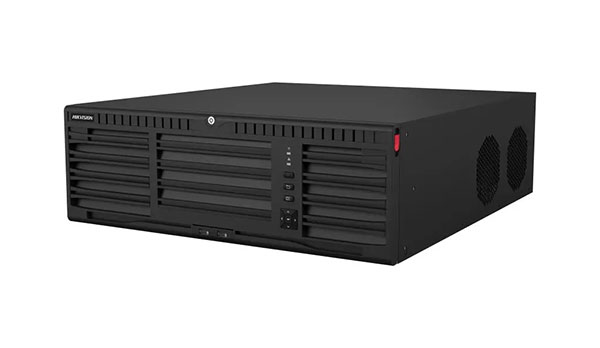

NVR 64 Channel 16 SATA M-Series No HDD Hikvision
Hikvision M-Series NVR features 64 channels, 16 SATA and no HDD supplied. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 64-Channel NVR, Hikvision 16-Bay NVR, DS-9664NI-M16 Network Video Recorder
Technical Specifications
- Model: DS-9664NI-M16
- IP Camera Inputs: 64 channels
- Incoming Bandwidth: Up to 400 Mbps
- Outgoing Bandwidth: Up to 400 Mbps
- Decoding: Up to 2-ch 32 MP, 10-ch 8 MP, 20-ch 4 MP or 40-ch 1080p
- Video Output: 8K HDMI, dual 4K-capable HDMI/VGA outputs
- SATA Interfaces: 16 hot-plug SATA interfaces
- Maximum Storage: Up to 16 TB per HDD
- External Storage: 1 eSATA interface
- RAID: RAID 0, 1, 5, 6 and 10
- Network Interfaces: 2 x RJ-45 Gigabit Ethernet
- Alarm Interfaces: 16 alarm inputs and 9 alarm outputs
- USB Interfaces: 2 x USB 2.0 front and 2 x USB 3.0 rear
- Power Supply: 100-240 VAC, 50-60 Hz redundant power supply
- Power Consumption: 50 W maximum without HDD
- Operating Temperature: -10 °C to 55 °C
- Operating Humidity: 10% to 90%
- Chassis: 3U rack-mount chassis
- HDD Provision: No HDD supplied
- Dimensions (H x L x W): 150mm x 496mm x 445mm
- Weight: 12.5 kg
Key Features
- Supports up to 64 IP cameras
- 8K HDMI video output and dual 4K display capability
- Sixteen hot-plug SATA bays for high-capacity surveillance storage
- Supports RAID 0, 1, 5, 6 and 10 for storage resilience
- Up to 400 Mbps incoming and outgoing network bandwidth
- H.265+ compression helps reduce storage and network requirements
- Supports synchronous playback across up to 16 channels
- Suitable for enterprise, commercial and large-scale CCTV systems
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or electrical contractor. Rack mounting, mains connection, network configuration, storage installation and CCTV commissioning must follow the manufacturer's instructions and applicable Australian requirements.
Applications
- Large commercial CCTV installations
- Enterprise and industrial security systems
- Government, education and healthcare surveillance systems
- Retail, logistics and warehouse monitoring
- Multi-camera IP surveillance systems requiring centralised RAID storage
Standards & Compliance
- AS/NZS 62368.1: applicable safety standard for ICT and audio/video equipment; verify model-specific conformity documentation before sale
- AS/NZS 3820: essential safety requirements may apply to in-scope electrical equipment
- AS/NZS 3000:2018: applicable to the electrical installation and connection of the equipment
Environmental Benefits
- H.265+ video compression can reduce storage capacity and network bandwidth requirements compared with less efficient codecs
- RAID and hot-plug storage support can extend system service life and reduce premature equipment replacement
- No HDD supplied allows selection of appropriately sized surveillance drives and avoids unnecessary storage hardware where existing drives are available
- Rack-mount construction supports long-term serviceability and component replacement
Warranty Information
Hikvision NVRs supplied through authorised Australian distribution are commonly covered by a 3-year manufacturer warranty, subject to the applicable sales contract and serial-number verification. Hikvision's 5-year project warranty applies only to listed premium product lines and should not be assumed for this M-Series model.
Available Now
Available through Hikvision and authorised Australian security-system distributors, subject to distributor stock and regional availability.
