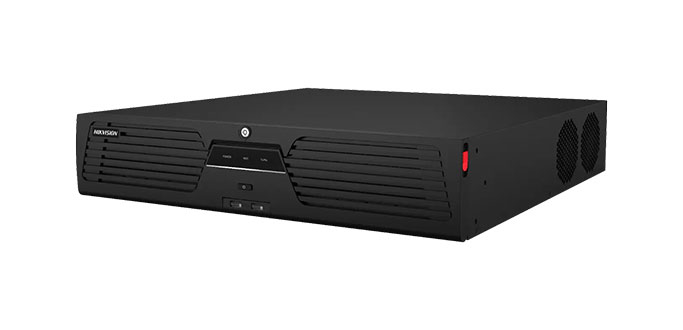

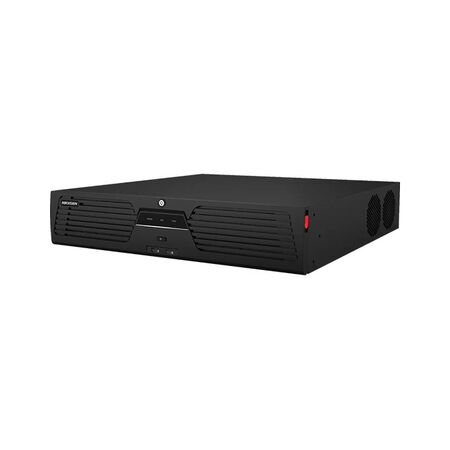

NVR 64 Channel 8 SATA M-Series No HDD Hikvision
Hikvision M-Series NVR features 64 channels, 8 SATA and no HDD supplied. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 64-Channel Network Video Recorder, DS-9664NI-M8 8-Bay NVR, M-Series CCTV Recorder
Technical Specifications
- Model: DS-9664NI-M8
- Video Inputs: Up to 64 IP camera channels
- Incoming Bandwidth: Up to 400 Mbps
- Outgoing Bandwidth: Up to 400 Mbps
- Video Compression: H.265+, H.265, H.264+ and H.264
- Decoding Capability: Up to 2-channel 32 MP, 8-channel 8 MP or 32-channel 1080p
- Storage Interfaces: 8 hot-plug SATA interfaces and 1 eSATA interface
- Maximum Storage: Up to 16 TB per HDD
- Supported RAID: RAID 0, 1, 5, 6 and 10
- Video Outputs: 2 HDMI and 2 VGA outputs; HDMI output up to 8K
- Network Interfaces: 2 x RJ-45 10/100/1000 Mbps Ethernet
- Alarm Interfaces: 16 alarm inputs and 9 alarm outputs
- Power Supply: 100–240 VAC, 50–60 Hz
- Power Consumption: Up to 50 W without HDD
- Operating Temperature: -10°C to 55°C
- Operating Humidity: 10% to 90% RH
- Chassis: 2U rack-mount chassis
- HDD: Not included
- Certifications: CE and FCC
- Dimensions (H x L x W): 93mm x 465mm x 445mm
- Weight: 10 kg
Key Features
- Supports up to 64 IP camera channels
- 8 SATA bays for high-capacity surveillance storage
- Supports RAID 0, 1, 5, 6 and 10 for storage redundancy
- 8K HDMI output and dual-source video display
- 400 Mbps incoming and outgoing network bandwidth
- H.265+ compression can reduce recording storage requirements
- Supports ANPR, people counting, fisheye and other specialist camera functions
- Hik-Connect and encrypted stream support for remote management and secure access
- Hot-plug HDD bays simplify storage installation and replacement
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or electrical contractor. The NVR requires mains power and should be installed, configured and commissioned in accordance with applicable Australian electrical, network and video surveillance requirements.
Applications
- Large commercial CCTV systems
- Industrial and warehouse surveillance
- Enterprise video surveillance installations
- Retail, shopping centre and car park security
- Government, education and transport security systems
- High-capacity IP camera recording with RAID storage
- ANPR, people counting and specialist camera deployments
Standards & Compliance
- Applicable video surveillance system requirements: AS/NZS 62676.1.1:2020
- Applicable video transmission performance requirements: AS/NZS 62676.1.2:2020
- Applicable video surveillance application and installation guidance: AS/NZS 62676.4:2020
Environmental Benefits
- H.265+ compression can reduce recording storage requirements and associated HDD capacity needs
- RAID support and a rack-mount design can extend system service life by supporting storage redundancy and component replacement
- No HDD is supplied, allowing the installer to select appropriately sized surveillance drives and avoid unnecessary storage hardware
- Designed for continuous surveillance operation with a specified maximum power consumption of 50 W without HDD
Warranty Information
Warranty depends on the Australian supply channel and product eligibility. Australian Hikvision listings commonly specify a 3-year manufacturer warranty for NVRs, while Hikvision Oceania lists a 5-year warranty programme for eligible Ultra Series network video recorders manufactured after 1 March 2022. Confirm coverage with the authorised distributor for the supplied unit.
Available Now
Available through Hikvision and authorised Australian security equipment distributors, subject to regional model and stock availability.
