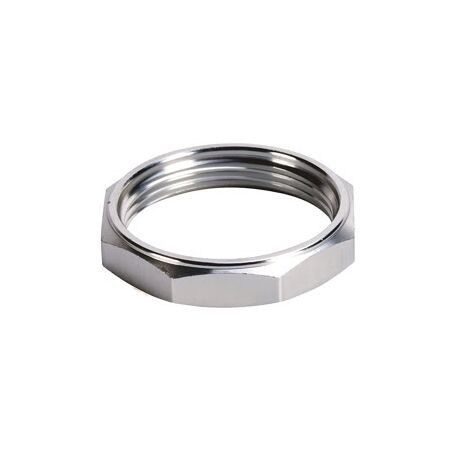

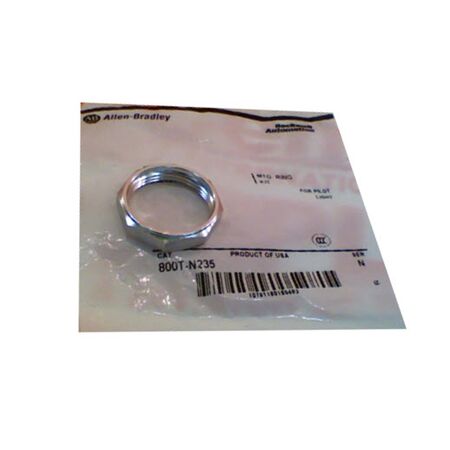

Octagonal Mounting 30mm Push Button Plastic Allen-Bradley
This octagonal mounting ring is designed for 30mm push button devices and standard pilot light device mounting in industrial control panels. It features a durable industrial-grade plastic or metal construction and measures H x L x W: 10mm x 35mm x 35mm. The 800TN235 is compatible with 30mm push button devices and suitable for machinery operator interfaces. See the full product details below for dimensions, materials, and installation requirements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Octagonal mounting ring
- Size: 30mm for push button devices
- Compatibility: Standard pilot light devices
- Material: Durable industrial-grade plastic or metal
- Dimensions (H x L x W): 10mm x 35mm x 35mm
- Weight: 0.1 kg
Key Features
- Octagonal mounting ring design
- Compatible with 30mm push button devices
- Replacement part for standard pilot light devices
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper fit and electrical safety.
Applications
- Industrial control panels
- Machinery operator interfaces
- Standard pilot light device mounting
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Extends the life of existing control devices by enabling easy replacement and maintenance.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800TN235 Octagonal Mounting Ring is available for immediate purchase, ideal for industrial and commercial control panel maintenance and upgrades.
FAQ
Q: What size push button devices does the 800TN235 support?
A: It is designed for 30mm push button devices.
Q: Where can the octagonal mounting ring be used?
A: It is suitable for industrial control panels, machinery operator interfaces, and standard pilot light device mounting.
For compatible indication components, pair this mounting ring with a 30mm LED pilot light for control panel applications.
A 18mm LED pilot light is another mounting option for panel indication applications.
For neon-based indication, a neon indicator mechanism can be used with suitable switch and indicator assemblies.
Use the pilot light selection guide when choosing suitable indication components for control panel applications.
