OH Earth Cable Set 70mm² | 2m A/B/C Phase Tails | 7m Earth Tail | Durable Insulation by Cabac

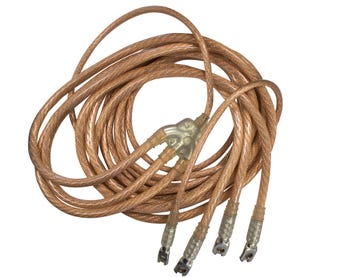

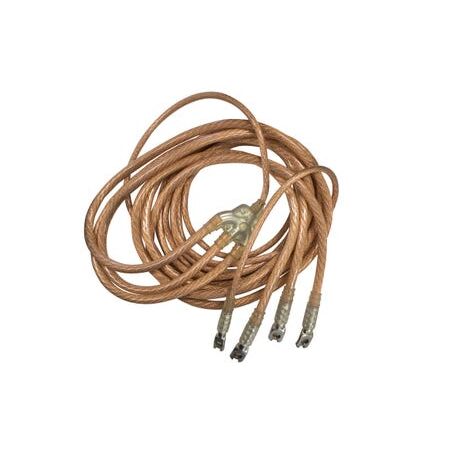

The Cabac OH Earth 70/35 mm2 Cable is a high-quality overhead earth cable set designed for electrical earthing and bonding applications, featuring durable copper conductors and advanced insulation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: OH Earth 70/35 mm2 Cable
Brand: Cabac
SKU: D-770604-S
Alternatively Known As: Overhead Earth Cable 70mm2, Copper Earthing Cable Set, Trifurcated Earth Cable, Electrical Earthing Cable
Technical Specifications
- Cable Set Only
- A/B/C Phase Tail: 70mm² x 2 meters
- Earth Tail: 25mm² x 7 meters
- Rated to withstand 19.5kA fault current for 0.5 seconds
- Advanced rubber moulding and insulation for enhanced durability
- Dimensions (H x L x W): 35mm x 7000mm x 70mm
- Weight: 3 kg
Key Features
- German engineered ultra high quality copper trifurcating earthing cable set
- Includes 2m A/B/C phase tails of 70mm²
- Includes 7m earth tail of 25mm²
- Advanced rubber moulding and insulation for durability
- Rated to 19.5kA for 0.5 seconds for high fault current withstand
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with safety standards and proper earthing connections.
Applications
- Electrical power connectivity for overhead earth cable systems
- Earthing and bonding in electrical installations
- Temporary portable earthing for safety during electrical works
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High-quality copper conductors ensure efficient conductivity reducing energy loss
- Durable insulation reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac OH Earth 70/35 mm2 Cable is available for immediate purchase, ideal for electrical earthing and bonding applications in industrial and commercial settings.
