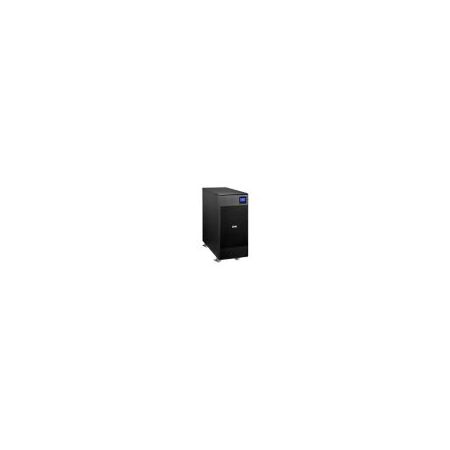

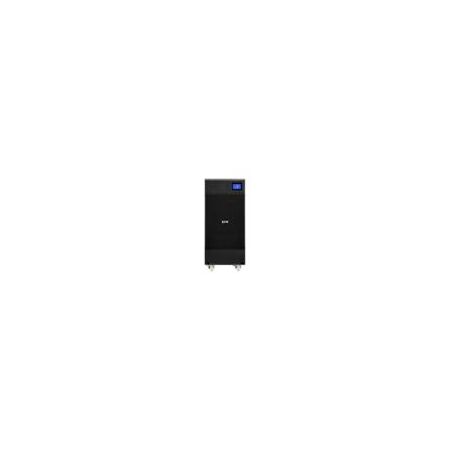

On Line Tower UPS 6000VA | 5400W Power | Hot Swappable Battery | LCD Display | Eaton
Eaton's On Line Tower UPS delivers 6000VA and 5400W power, featuring a hot swappable battery and multilingual LCD display—ideal for data centers and critical power protection. Built for industrial and commercial use, it ensures consistent power quality with low noise operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: On Line Tower UPS 6000VA | 5400W Power | Hot Swappable Battery | LCD Display | Eaton
Brand: Eaton
SKU: 9104-12891
Alternatively Known As: Eaton 9SX UPS 6000VA Tower, Eaton 9SX 6kVA UPS, Eaton 9SX 5400W UPS, Eaton 9SX On Line UPS Tower
Technical Specifications
- Topology: Online/Double-conversion
- Form factor: Tower, free standing model
- VA rating: 6000 VA
- Wattage: 5400 W
- Input nominal voltage: 240V
- Input frequency range: 40-70 Hz
- Output nominal voltage: 240V AC
- Output waveform: Sine wave
- Output frequency: 50/60 Hz
- Output power factor: 0.9
- Phase (input/output): Single-phase
- Input voltage range: 180-276 Vac without derating (up to 120-276 Vac with derating)
- Battery type: Sealed, lead-acid
- Battery replacement: Hot swappable
- Internal bypass: Yes
- Auto shutdown function: Yes
- Noise level: <45 dB at 1 meter
- Relative humidity: 0-96% non-condensing
- Temperature range: 0° to 40°C
- Altitude: <1000m for nominal power, 10% power degrading every 1000m up to 3000m
- User interface: Multilingual graphical LCD display
- Expansion slots: One slot for optional communication card
- Software compatibility: Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
- Dimensions (H x L x W): 575mm x 244mm x 542mm
- Weight: 65.5 kg
Key Features
- Online/Double-conversion topology for consistent power quality
- Built-in sealed lead-acid battery with hot swappable replacement
- Multilingual graphical LCD display for easy monitoring
- Internal bypass for uninterrupted power during maintenance
- Supports extended battery capability
- Single-phase input and output at 240V
- Input voltage range 180-276 Vac without derating
- Output power factor of 0.9
- Low noise level under 45 dB at 1 meter
- One expansion slot for optional communication card
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical standards and safe operation.
Applications
- Data centers and server rooms
- Telecommunications equipment
- Medical and laboratory equipment
- Industrial and commercial power protection
- Office and IT infrastructure
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient online double-conversion technology reduces power loss
- Extended battery capability supports longer runtime and reduces battery waste
- Low noise operation minimizes environmental noise pollution
Warranty Information
Standard manufacturer warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton 9SX 6000VA/5400W On Line Tower UPS is available now for immediate purchase. Ideal for critical power protection in data centers, industrial, and commercial environments.
