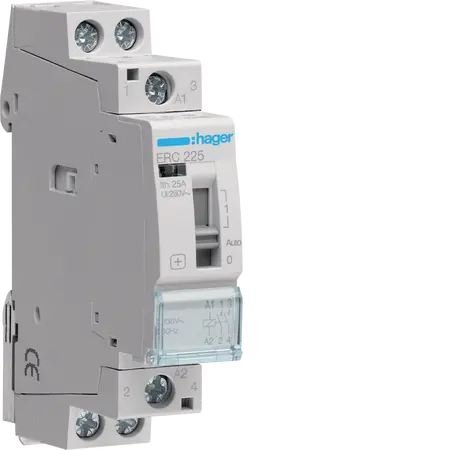

Override Contactor 25A 2NO 230V 50Hz Grey Hager
Hager Override Contactor 25A 2NO 230V 50Hz Grey. Ideal for motor control and industrial switching.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type of contacts: 2NO
- Rated current: 25A
- Rated insulation voltage: 250V
- Rated impulse withstand voltage: 4000V
- Operating temperature: -10 to 50°C
- Storage temperature: -40 to 80°C
- Total power loss under IN: 4W
- Inrush power absorbed: 10.70VA
- Nominal tightening torque: 1.20Nm
- Dimensions (H x L x W): 83mm x 60mm x 18mm
- Weight: 0.5 kg
Key Features
- Rated current of 25A with 2 normally open contacts.
- Wide operating temperature range from -10°C to 50°C.
- High endurance with 100,000 mechanical operations.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, machinery control
- Commercial: HVAC systems, lighting control
- Residential: Home automation systems
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager Override Contactor 25A, 2NO, 230V~50Hz is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable control.
