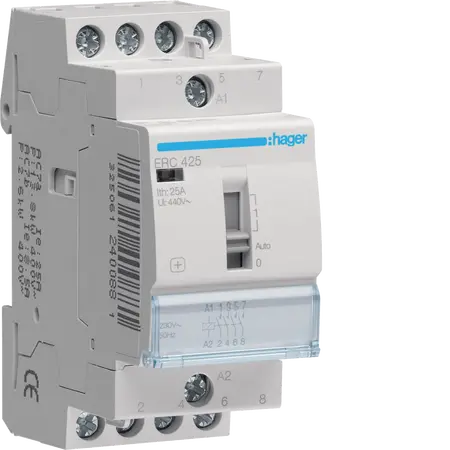

Override Contactor 25A 4NO Contacts 230VAC Ui 440V Grey Hager
Hager Override Contactor 25A 4NO Contacts 230VAC Ui 440V Grey. Ideal for motor control and industrial switching.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type of contacts: 4NO
- Number of contacts: 4
- Cross-section flexible conductor: 1 - 6 mm²
- Cross-section rigid conductor: 1 - 10 mm²
- Rated current: 25 A
- Rated impulse withstand voltage Uimp: 4000 V
- Rated insulation voltage Ui: 440 V
- Command voltage AC: 230 - 230 V
- Command voltage DC: 0 - 0 V
- Operating temperature: -10 - 50 °C
- Storage/transport temperature: -40 - 80 °C
- Number of mechanical operations: 100000
- Electric endurance in number of cycles: 30000
- Total power loss under IN: 7.50 W
- Inrush power absorbed: 21 VA
- Nominal tightening torque: 1.20 Nm
- Number of modules: 2
- Dimensions (H x L x W): 83mm x 60mm x 35.75mm
- Weight: 0.6 kg
Key Features
- 4 Normally Open (NO) contacts for versatile control
- Rated current of 25A, suitable for various applications
- High electric endurance with 30,000 cycles
- Manual switch available for easy control
Professional Installation Requirements
- Professional installation by a certified electrician is recommended to ensure optimal performance and safety.
Applications
- Commercial: Industrial settings, factories, and automation systems
- Residential: For electrical systems requiring contactor implementation
Standards & Compliance
- Complies with AS/NZS standards for safety and reliability.
Environmental Benefits
- Designed for high efficiency with minimal power loss.
Warranty Information
1 year warranty against defects.
Available Now
The Hager ERC425 Override Contactor is available for immediate purchase. Ideal for commercial and residential electrical control systems requiring reliable contactor solutions.
