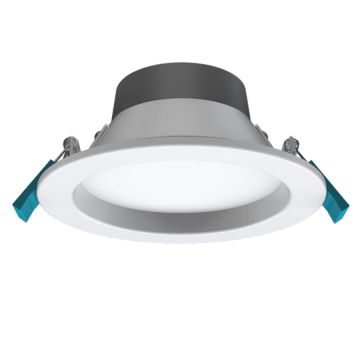

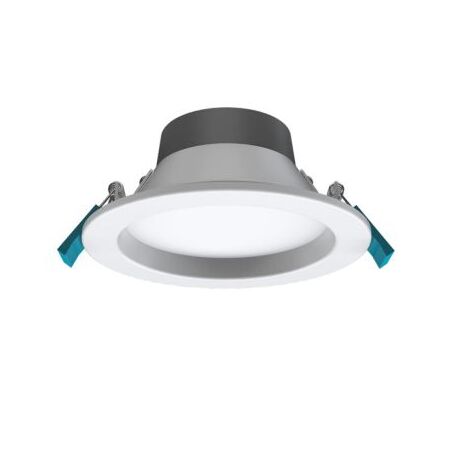

'Ovolo 145mm Downlight 0/1-10V Dimmable Driver 350mA 14W Haneco'

BRAND: Haneco
SKU: OVL145R-H10VD
$129.70 List price: $173.00
+ −
30 Days Return Electricians Unlock Trade Access
'Haneco Ovolo 145mm downlight features 14W output, 350mA 0/1-10V dimmable driver and power switchable operation. Ideal for commercial ceiling lighting.'

Alternatively Known As: Haneco OVL145R-H10VD, Ovolo 145mm Commercial Downlight, 350mA 0/1-10V Dimmable Downlight

Technical Specifications
  • Power: 14W maximum, power switchable
  • Driver: Remote 350mA constant-current driver
  • Dimming: 0/1-10V dimmable
  • Input Voltage: 220-240V AC, 50/60Hz
  • Luminous Flux: 1348 / 1554 / 1457 lm at 3000K / 4000K / 5700K
  • Colour Temperature: Tritone selectable, 3000K / 4000K / 5700K
  • Beam Angle: 100°
  • Colour Rendering Index: CRI >85
  • Power Factor: >0.9
  • Ingress Protection: IP63 from below
  • Insulation Rating: IC-4
  • Electrical Classification: Class II
  • Housing Material: Aluminium
  • Diffuser Material: Opal polycarbonate
  • Lifespan: >50,000 hours at Ta 25°C, L70
  • Operating Temperature: -20°C to 45°C
  • Connection: 0.9m flex and plug
  • Cut-out Diameter: 120mm
  • Dimensions (H x L x W): 61mm x 145mm x 145mm
  • Weight: 0.4 kg
Key Features
  • 14W power-switchable commercial LED downlight
  • 0/1-10V dimmable 350mA remote driver
  • Tritone colour selection from 3000K to 5700K
  • IC-4 rated for suitable recessed ceiling applications
  • Aluminium housing with recessed opal diffuser
  • High-efficiency LED output up to 1554 lumens
  • Suitable for offices, retail spaces, showrooms, education facilities and meeting rooms
  • Class II double-insulated construction
  • KASTA-compatible ecosystem
Professional Installation Requirements
  • Installation and mains electrical connection must be performed by a licensed electrician in accordance with the manufacturer’s instructions and AS/NZS 3000. The 0/1-10V control wiring and dimming system must be installed and commissioned by a suitably qualified electrical professional.
Applications
  • Commercial ceiling lighting
  • Offices and boardrooms
  • Retail spaces and showrooms
  • Education facilities
  • Medical facilities
  • Hallways, entrances and staircases
  • Food courts and function areas
  • Commercial bathroom and awning lighting
Standards & Compliance
  • Applicable recessed luminaire requirements: AS/NZS 60598.2.2
  • Electrical installation requirements: AS/NZS 3000
Environmental Benefits
  • LED technology provides lower energy consumption than comparable halogen or fluorescent downlights
  • Projected service life exceeding 50,000 hours can reduce replacement frequency and waste
  • Aluminium housing is recyclable at end of service life
  • Power switching and dimming support can reduce lighting energy use when lower output is suitable
Warranty Information

Haneco’s Ovolo product literature specifies a 5-year warranty. Haneco’s current warranty policy provides a 3-5 year direct replacement warranty depending on the product and requires installation by an authorised or licensed electrician. ([haneco.com.au](https://haneco.com.au/import/downloads/OVOLO_Haneco_OVOLO_ProductFlyer-WH%26BK.pdf))

Available Now

Available through Haneco and authorised Australian electrical wholesalers and distributors.
