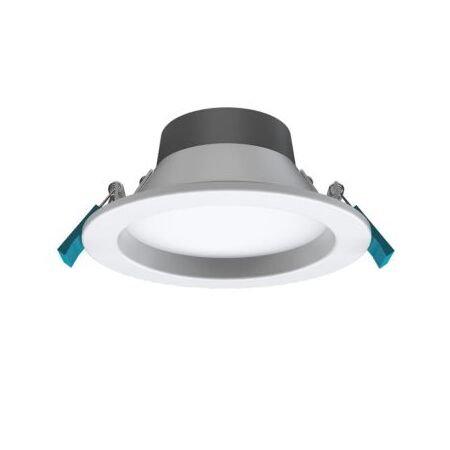

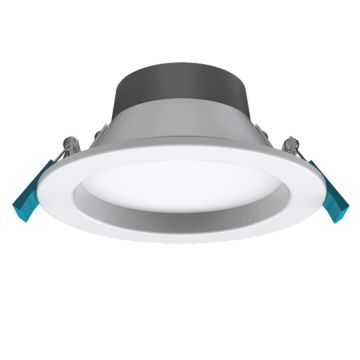

'Ovolo 145mm Downlight with DALI Dimmable Driver 350mA 14W Haneco'

BRAND: Haneco
SKU: OVL145R-HDALI
$157.40 List price: $209.90
+ −
30 Days Return Electricians Unlock Trade Access
'Haneco Ovolo 145mm downlight features 14W output, 350mA DALI dimmable driver and power switchable operation. Ideal for commercial ceiling lighting.'

Alternatively Known As: Haneco OVOLO OVL145R-HDALI, Ovolo 145 DALI Downlight, Commercial LED Recessed Downlight

Technical Specifications
  • Product Code: OVL145R-HDALI
  • Power: 14 W
  • Driver: DALI dimmable, power switchable
  • Driver Output: 350 mA
  • Input Voltage: 220–240 V AC
  • Input Frequency: 50/60 Hz
  • Cut-out Diameter: 120 mm
  • Body Material: Aluminium
  • Diffuser Material: Opal polycarbonate
  • Electrical Classification: Class II
  • IP Rating: IP63 from the front
  • IC Rating: IC-4
  • Power Factor: >0.9
  • Protection: Overload and short circuit
  • Colour Temperature: Tritone selectable, 3000 K / 4000 K / 5700 K
  • Colour Rendering Index: CRI >80
  • Beam Angle: 100°
  • Operating Ambient Temperature: -20°C to 45°C
  • Rated Life: More than 50,000 hours at Ta 25°C, L70
  • Power Lead: 0.9 m flex and plug
  • Dimensions (H x L x W): 61mm x 145mm x 145mm
  • Weight: 0.4 kg
Key Features
  • DALI dimmable driver for commercial lighting control systems
  • Power switchable operation
  • Tritone colour selection between 3000 K, 4000 K and 5700 K
  • Low-profile 145 mm round recessed fitting
  • IC-4 rated for suitable insulated ceiling applications
  • IP63 front-face protection for indoor and sheltered outdoor locations
  • Aluminium housing with opal polycarbonate diffuser
  • Overload and short-circuit protection
  • Suitable for commercial ceilings, offices, retail spaces and education facilities
Professional Installation Requirements
  • Installation and mains electrical connection must be completed by a licensed electrician in accordance with the manufacturer's instructions and applicable Australian wiring requirements, including AS/NZS 3000. Confirm ceiling construction, insulation clearances, IC-4 installation conditions and DALI control compatibility before installation.
Applications
  • Commercial ceiling lighting
  • Offices and boardrooms
  • Retail spaces and showrooms
  • Education facilities
  • Food courts and function areas
  • General medical facilities
  • Hallways and entrance areas
  • Indoor and sheltered outdoor areas
Standards & Compliance
  • AS/NZS 60598.2.2: Applicable requirements for recessed luminaires
  • AS/NZS 3000: Applicable requirements for electrical installation and wiring
Environmental Benefits
  • LED technology provides efficient illumination with lower operating power than conventional halogen and fluorescent alternatives
  • Rated life exceeding 50,000 hours can reduce replacement frequency and associated waste
  • Aluminium housing is a recyclable material
  • DALI dimming and power switching can support reduced energy consumption when integrated with an appropriate control system
Warranty Information

Haneco lighting products are generally covered by a direct replacement warranty of 3–5 years depending on the model. Haneco's standard warranty states 3 years against manufacturing defects unless otherwise specified; installation by a licensed electrician and compliance with the installation instructions are required.

Available Now

Available through Haneco and authorised Australian electrical and lighting distributors.

Lighting Requirement Calculator






This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
