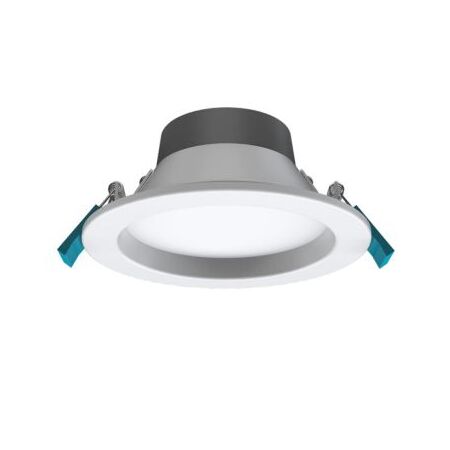

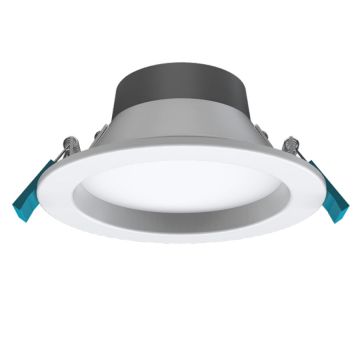

'Ovolo 165mm Downlight 0/1-10V Dimmable Driver 350mA 18W Haneco'

BRAND: Haneco
SKU: OVL165R-H10VD
$141.80 List price: $189.10
+ −
30 Days Return Electricians Unlock Trade Access
'Haneco Ovolo 165mm downlight features 18W output, 350mA 0/1-10V dimmable driver and power switchable operation. Ideal for commercial ceiling lighting.'

Alternatively Known As: OVOLO OVL165R-DIM, 165mm Commercial LED Downlight, 18W Tritone LED Downlight

Technical Specifications
  • Product Code: OVL165R-DIM
  • Rated Power: 18W
  • Driver: Remote 350mA 0/1-10V dimmable driver
  • Dimming: 0/1-10V, DALI and DSI driver options; phase-cut option available for replacement applications
  • Lumen Output: 1,767 lm at 3000K, 1,994 lm at 4000K, 1,908 lm at 5700K
  • Efficacy: 100 lm/W at 3000K, 119 lm/W at 4000K, 109 lm/W at 5700K
  • Colour Temperature: Tritone selectable 3000K/4000K/5700K
  • Colour Rendering Index: CRI >80
  • Input Voltage: 220-240V AC, 50/60Hz
  • Power Factor: >0.9
  • Ingress Protection: IP63 from below
  • Electrical Classification: Class II
  • Housing Material: Painted aluminium
  • Diffuser Material: Opal polycarbonate
  • Operating Temperature: -20°C to 45°C
  • Rated Lifespan: More than 50,000 hours at Ta 25°C
  • Power Lead: 0.9m flex and plug
  • Dimensions (H x L x W): 63mm x 165mm x 165mm
  • Weight: 0.5 kg
Key Features
  • 18W commercial LED downlight for 165mm fascia applications
  • 0/1-10V dimmable 350mA driver configuration
  • Power switchable operation
  • Tritone selectable colour temperature
  • Recessed diffuser to help minimise glare
  • IP63 rating from below
  • Class II double-insulated construction
  • Flicker-free driver design
  • High ambient temperature rating above 40°C
  • Suitable for retrofit replacement of compact fluorescent and metal halide fittings
  • Optional DALI driver configuration available
Professional Installation Requirements
  • Installation and mains electrical connection must be completed by a licensed electrician in accordance with the manufacturer's installation instructions and applicable Australian wiring requirements. Haneco's warranty requires installation by a licensed electrician.
Applications
  • Commercial ceiling lighting
  • Offices and meeting rooms
  • Retail spaces and showrooms
  • Education and medical facilities
  • Hallways, entrances and staircases
  • Food courts and function areas
  • Awnings and suitable bathroom applications
  • Retrofit replacement of compact fluorescent and metal halide downlights
Standards & Compliance
  • AS/NZS 60598 for general lighting equipment; Haneco states its LED lighting products comply with applicable Australian and New Zealand electrical safety standards. ([haneco.com.au](https://haneco.com.au/support/faqs/?utm_source=openai))
Environmental Benefits
  • LED technology provides lower energy consumption than equivalent compact fluorescent and metal halide fittings
  • Rated lifespan exceeding 50,000 hours can reduce replacement frequency and lighting waste
  • Power switchable and dimmable operation can help reduce energy use when integrated with suitable controls
  • Aluminium housing is durable and recyclable at end of product life
  • Tritone colour selection and retrofit compatibility can extend the useful life of existing ceiling cut-outs
Warranty Information

5-year warranty shown for the Ovolo range; Haneco provides direct replacement for eligible manufacturing defects, subject to its warranty terms and licensed-electrician installation requirements. ([haneco.com.au](https://haneco.com.au/products/ovolo/))

Available Now

Available through Haneco and authorised Australian electrical wholesalers.
