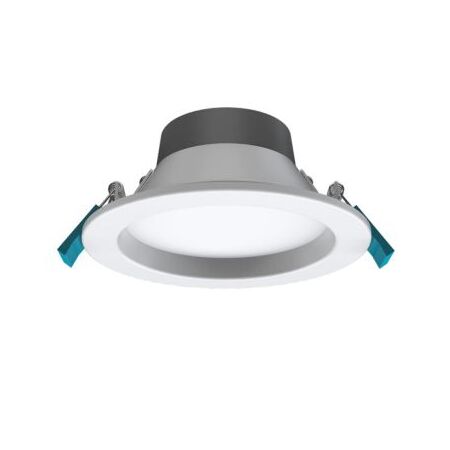

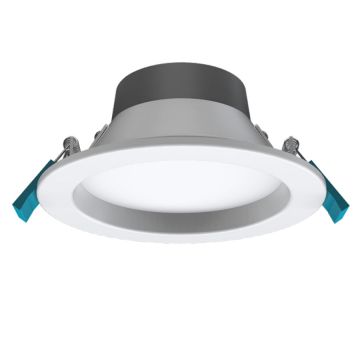

'Ovolo 165mm Downlight with DALI Dimmable Driver 350mA 18W Haneco'

BRAND: Haneco
SKU: OVL165R-HDALI
$169.50 List price: $226.00
+ −
30 Days Return Electricians Unlock Trade Access
'Haneco Ovolo 165mm downlight features 18W output, 350mA DALI dimmable driver and power switchable operation. Ideal for commercial ceiling lighting.'

Alternatively Known As: Haneco OVOLO 165mm Commercial Downlight, OVL165R-HDALI, 18W DALI LED Downlight

Technical Specifications
  • Power: 18W
  • Driver: Remote DALI dimmable power-switchable driver
  • Driver Current: 350mA
  • Lumen Output: 1767 / 1994 / 1908 lm at 3000K / 4000K / 5700K
  • Efficacy: Up to 119 lm/W
  • Colour Temperature: 3000K / 4000K / 5700K tritone selectable
  • Colour Rendering Index: >85
  • Beam Angle: 100°
  • Cut-out Diameter: 135mm
  • Input Voltage: 220-240V AC, 50/60Hz
  • Electrical Classification: Class II double insulated
  • Ingress Protection: IP63, front face only
  • Body Material: Aluminium
  • Diffuser Material: Opal polycarbonate
  • Connection: 0.9m flex and plug
  • Operating Temperature: -20°C to 45°C
  • Rated Life: >50,000 hours at Ta 25°C, L70
  • Power Factor: >0.9
  • Protection: Overload and short-circuit protection
  • DALI Product Code: OVL165R-HDALI, SAP 7000258
  • Dimensions (H x L x W): 63mm x 165mm x 165mm
  • Weight: 0.5 kg
Key Features
  • DALI dimming for integration with commercial lighting control systems
  • 350mA remote driver with power-switchable operation
  • Tritone colour selection between 3000K, 4000K and 5700K
  • 165mm round fascia with 135mm ceiling cut-out
  • Recessed opal diffuser for broad, comfortable light distribution
  • IP63 protection at the front face for suitable indoor and selected sheltered applications
  • Class II double-insulated construction
  • Suitable for commercial offices, retail areas, corridors, meeting rooms, education facilities and general medical areas
Professional Installation Requirements
  • Installation and connection to mains or DALI control wiring should be performed by a licensed electrician in accordance with the manufacturer's instructions and AS/NZS 3000. Confirm ceiling, insulation and thermal-clearance requirements before installation.
Applications
  • Commercial offices and meeting rooms
  • Retail stores, showrooms and food courts
  • Education facilities
  • Hotels, entrances and hallways
  • General medical facilities
  • Function areas and sheltered outdoor or wet-area applications where the IP rating is suitable
Standards & Compliance
  • Applicable recessed-luminaire safety standard: AS/NZS 60598.2.2
  • Electrical installation and wiring should comply with AS/NZS 3000
Environmental Benefits
  • 18W LED operation can reduce energy consumption compared with higher-wattage conventional commercial light sources
  • Long rated life of more than 50,000 hours can reduce replacement frequency and installation waste
  • Aluminium housing and polycarbonate components may be recoverable through appropriate material-recycling streams
  • Tritone and DALI control allow light output and colour selection to be matched to application requirements, supporting efficient lighting operation
Warranty Information

5-year manufacturer's warranty for the OVOLO range, subject to Haneco warranty terms and correct installation.

Available Now

Available through Haneco and authorised Australian electrical wholesalers and distributors.
