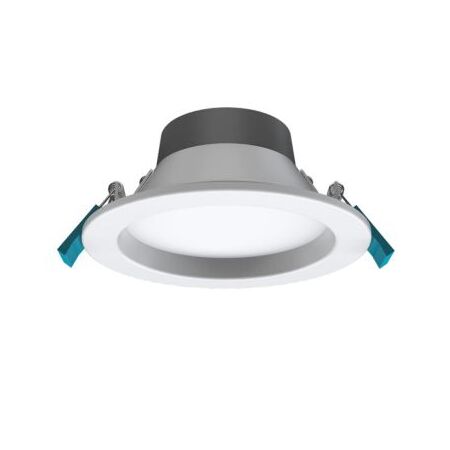

'Ovolo 200mm Downlight 0/1-10V Dimmable Driver 350mA 18W Haneco'

BRAND: Haneco
SKU: OVL200R-H10VD
$158.80 List price: $211.70
+ −
30 Days Return Electricians Unlock Trade Access
'Haneco Ovolo 200mm downlight features 18W output, 350mA 0/1-10V dimmable driver and power switchable operation. Ideal for commercial ceiling lighting.'

Alternatively Known As: Ovolo 200mm Commercial Downlight, 0/1-10V Dimmable LED Downlight, Haneco OVL200R-H10VD

Technical Specifications
  • Model: OVL200R-H10VD
  • Input Power: 18W
  • LED Current: 350mA
  • Dimming: 0/1-10V
  • Driver: Remote, power-switchable dimmable driver
  • Input Voltage: 220-240V AC
  • Input Frequency: 50/60Hz
  • Colour Temperature: 3000K / 4000K / 5700K tritone selectable
  • Lumen Output: 1767 / 1994 / 1908 lm at 3000K / 4000K / 5700K
  • Efficacy: 100 / 119 / 109 lm/W at 3000K / 4000K / 5700K
  • Beam Angle: Approximately 100°
  • Colour Rendering Index: CRI >80
  • Ingress Protection: IP63 from below
  • Electrical Classification: Class II
  • Power Factor: >0.9
  • Body Material: Aluminium
  • Diffuser Material: Opal polycarbonate
  • Fascia Colour: White
  • Lifespan: >50,000 hours at Ta 25°C, L70
  • Operating Temperature: -20°C to 45°C
  • Power Lead: 0.9m flex and plug
  • Cutout Diameter: 160mm
  • Dimensions (H x L x W): 68mm x 200mm x 200mm
  • Weight: 0.6 kg
Key Features
  • 200mm commercial recessed downlight for ceiling applications
  • 0/1-10V dimmable operation with 350mA remote driver
  • Power-switchable 18W output
  • Tritone colour selection between 3000K, 4000K and 5700K
  • High-ambient-temperature rating for operation above 40°C
  • Aluminium housing with opal polycarbonate diffuser
  • IP63 ingress protection from below
  • Class II double-insulated construction
  • Power factor greater than 0.9
  • Long projected service life exceeding 50,000 hours
  • Suitable for commercial ceiling lighting installations
Professional Installation Requirements
  • Installation and connection to the 220-240V supply should be performed by a licensed electrician in accordance with the manufacturer's instructions and applicable Australian electrical installation requirements. The 0/1-10V control wiring should be installed and commissioned by a suitably qualified electrical contractor.
Applications
  • Commercial offices
  • Retail spaces and showrooms
  • Boardrooms and meeting rooms
  • Education facilities
  • Medical facilities
  • Food courts and function areas
  • Hallways, entrances and staircases
  • Commercial bathrooms and awnings
Standards & Compliance
  • AS/NZS 60598.1:2017 – general requirements and tests for luminaires
  • AS/NZS 60598.2.2:2016 – particular requirements for recessed luminaires
Environmental Benefits
  • LED technology provides efficient illumination compared with conventional fluorescent and discharge lighting
  • Tritone and power-switchable operation can help match light output and colour to project requirements, reducing unnecessary energy use
  • Projected service life exceeding 50,000 hours can reduce replacement frequency and associated waste
  • Aluminium housing is recyclable at end of product life
  • Low-maintenance design supports longer replacement intervals
Warranty Information

Haneco Ovolo products are covered by a 5-year manufacturer warranty against manufacturing defects, subject to Haneco warranty terms. Warranty claims require proof of purchase and installation by an authorised electrician; removal and reinstallation labour is generally excluded unless covered by an eligible Haneco Gold project.

Available Now

Available through Haneco and authorised Australian electrical distributors, subject to distributor stock levels.

Lighting Requirement Calculator






This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
