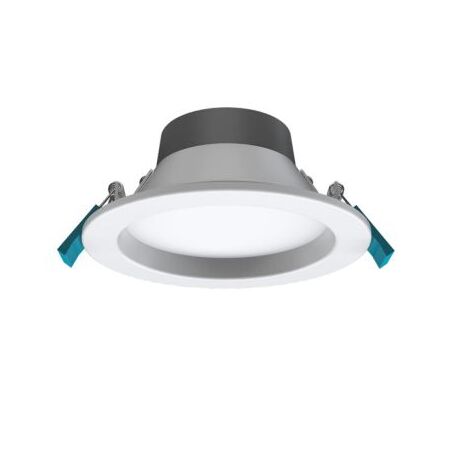

'Ovolo 200mm Downlight with DALI Dimmable Driver 400mA 20W Haneco'

BRAND: Haneco
SKU: OVL200R-HDALI
$209.50 List price: $279.40
+ −
30 Days Return Electricians Unlock Trade Access
'Haneco Ovolo 200mm downlight features 20W output, 400mA DALI dimmable driver and power switchable operation. Ideal for commercial ceiling lighting.'

Alternatively Known As: OVL200R-HDALI, Ovolo 200mm Commercial Downlight, Haneco Ovolo DALI Downlight

Technical Specifications
  • Product Code: OVL200R-HDALI
  • SAP Code: 7000261
  • Power: 20W
  • Driver: Remote DALI dimmable, 400mA
  • Power Switching: Switchable output modes
  • Lumen Output: 1,805 lm at 3000K; 2,050 lm at 4000K; 1,933 lm at 5700K
  • Colour Temperature: Tri-colour selectable, 3000K / 4000K / 5700K
  • Efficacy: Up to 120 lm/W
  • Beam Angle: 100°
  • Ingress Protection: IP63 from below
  • Body Material: Aluminium
  • Diffuser Material: Opal polycarbonate
  • Input Voltage: 220–240V AC, 50/60Hz
  • Power Factor: >0.9
  • Electrical Classification: Class II
  • Operating Temperature: -20°C to 45°C
  • Rated Life: Over 50,000 hours at Ta25°C, L70
  • Connection: 0.9m flex and plug
  • Installation Type: Recessed
  • Dimensions (H x L x W): 68mm x 200mm x 200mm
  • Weight: 0.6 kg
Key Features
  • DALI dimmable driver for commercial lighting control systems
  • 20W high-output LED configuration with selectable power operation
  • Tri-colour selection between 3000K, 4000K and 5700K
  • Wide 100° beam angle for general commercial illumination
  • IP63 protection from below
  • Remote driver design
  • Aluminium housing with opal polycarbonate diffuser
  • Suitable for offices, retail spaces, showrooms, meeting rooms, hallways and education facilities
Professional Installation Requirements
  • Installation and mains electrical connection must be completed by a licensed electrician. Install the recessed luminaire in accordance with the manufacturer's instructions, AS/NZS 3000 and applicable DALI control-system requirements. The fitting is marked do not cover and must not be covered by insulation or other materials.
Applications
  • Commercial offices and boardrooms
  • Retail spaces and showrooms
  • Meeting rooms and education facilities
  • Hallways, entrances and staircases
  • Medical facilities and food courts
  • General commercial ceiling lighting
Standards & Compliance
  • AS/NZS 60598.2.2 for recessed luminaires
  • AS/NZS 3000 for electrical installations and wiring rules
Environmental Benefits
  • LED technology provides lower energy consumption than comparable fluorescent or metal-halide lighting
  • Selectable output and DALI dimming can reduce energy use when lighting levels are adjusted to occupancy or task requirements
  • Aluminium housing is recyclable at end of service life
  • Rated service life exceeding 50,000 hours can reduce replacement frequency and associated waste
Warranty Information

Haneco specifies a 5-year warranty for the Ovolo range. Warranty claims are subject to Haneco's terms and require installation by an authorised or licensed electrician. ([haneco.com.au](https://haneco.com.au/import/downloads/OVL200R-DIM_DATASHEET%20OVOLO_OVL200R-DIM.pdf?utm_source=openai))

Available Now

Available through Haneco and authorised Australian electrical wholesalers.
