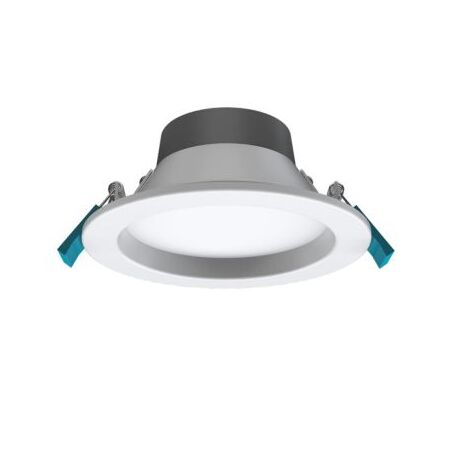

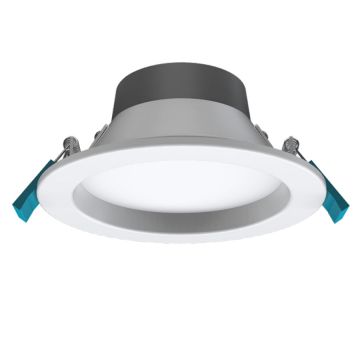

'Ovolo 230mm Downlight 0/1-10V Dimmable Driver 700mA 32W Haneco'

BRAND: Haneco
SKU: OVL230R-H10VD
$189.10 List price: $252.20
+ −
30 Days Return Electricians Unlock Trade Access
'Haneco Ovolo 230mm downlight features 32W output, 700mA 0/1-10V dimmable driver and power switchable operation. Ideal for commercial ceiling lighting.'

Alternatively Known As: OVL230R-H10VD, Ovolo 230mm LED Downlight, Commercial LED Downlight, 0-10V Dimmable Downlight

Technical Specifications
  • Product Code: OVL230R-H10VD
  • Power: 32W
  • Driver: Remote 700mA 0/1-10V dimmable driver
  • Dimming: 0/1-10V
  • Colour Temperature: 3000K / 4000K / 5700K tritone selectable
  • Input Voltage: 220-240V AC
  • Input Frequency: 50/60Hz
  • Ingress Protection: IP63 from below
  • Electrical Classification: Class II
  • Power Factor: >0.9
  • Body Material: Aluminium
  • Diffuser Material: Opal polycarbonate
  • Fascia Colour: White
  • Operating Ambient Temperature: -20°C to 45°C
  • Rated Life: >50,000 hours at Ta 25°C, L70
  • Power Lead: 0.9m flex and plug
  • Protection: Overload and short-circuit protection
  • Colour Rendering Index: CRI >80
  • Switchable Operation: Power switchable
  • Dimensions (H x L x W): 75mm x 230mm x 230mm
  • Weight: 0.9 kg
Key Features
  • 230mm commercial downlight format
  • 0/1-10V dimmable operation for commercial lighting controls
  • 700mA, 32W remote driver supplied
  • Tritone colour selection from 3000K, 4000K and 5700K
  • Power switchable output modes
  • Recessed diffuser designed to minimise glare
  • Aluminium housing for heat dissipation
  • Suitable for higher ambient temperature applications
  • KASTA compatible
  • IP63 protection from below
Professional Installation Requirements
  • Installation and mains electrical connection must be carried out by a licensed electrician in accordance with the manufacturer's instructions and AS/NZS 3000. Confirm 0/1-10V control wiring and compatible dimming equipment before installation.
Applications
  • Commercial ceiling lighting
  • Offices and meeting rooms
  • Retail spaces and showrooms
  • Education facilities
  • Medical facilities
  • Food courts and function areas
  • Hallways, entrances and staircases
  • Bathrooms and covered awnings
Standards & Compliance
  • AS/NZS 60598.1 for general luminaire safety requirements
  • AS/NZS 60598.2.2 for recessed luminaires
  • AS/NZS 3000 for electrical installation and wiring requirements
Environmental Benefits
  • LED technology provides lower energy consumption than many fluorescent and metal-halide replacement fittings
  • Long rated life of more than 50,000 hours can reduce replacement frequency and material waste
  • Aluminium housing and polycarbonate components are suitable for recycling through appropriate waste streams
  • Power switchable and dimmable operation can reduce energy use when full light output is not required
Warranty Information

Haneco product warranty against manufacturing defects is generally 3-5 years unless otherwise stated for the specific product. Warranty claims require proof of purchase and installation by an authorised electrician; removal and reinstallation costs are generally excluded.

Available Now

Available through Haneco and authorised Australian electrical wholesalers and distributors.

Lighting Requirement Calculator






This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
