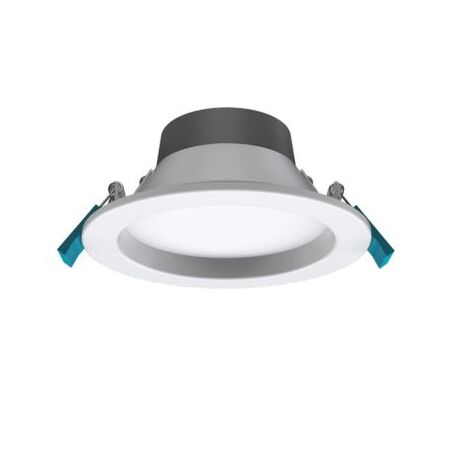

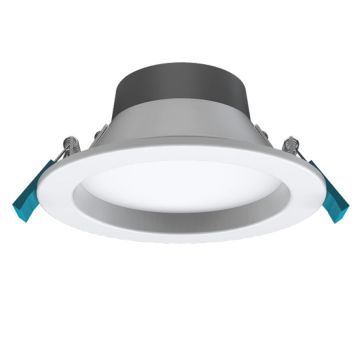

'Ovolo 230mm Downlight with DALI Dimmable Driver 700mA 32W Haneco'

BRAND: Haneco
SKU: OVL230R-HDALI
$216.80 List price: $289.10
+ −
30 Days Return Electricians Unlock Trade Access
'Haneco Ovolo 230mm downlight features 32W output, 700mA DALI dimmable driver and power switchable operation. Ideal for commercial ceiling lighting.'

Alternatively Known As: Haneco OVOLO OVL230R-HDALI, 230 mm commercial LED downlight, DALI dimmable recessed downlight

Technical Specifications
  • Product Code: OVL230R-HDALI
  • SAP Code: 7000264
  • Driver: DALI dimmable, power switchable, 700 mA, 32 W
  • Power Modes: 23 W / 30 W
  • Lumen Output: 2148 / 2479 / 2332 lm at 23 W; 2824 / 3273 / 3073 lm at 30 W
  • Colour Temperature: 3000 K / 4000 K / 5700 K, tritone selectable
  • Cut-out Diameter: 195 mm
  • Input: 220–240 V AC, 50/60 Hz
  • Electrical Classification: Class II, double insulated
  • Beam Angle: 100°
  • Ingress Protection: IP63 to front face
  • Colour Rendering Index: CRI >80
  • Power Factor: >0.9
  • Body Material: Painted aluminium
  • Diffuser Material: Opal polycarbonate
  • Driver Connection: Remote driver with 0.9 m flex and plug
  • Lifespan: >50,000 hours at Ta 25°C, L70
  • Operating Temperature: -20°C to 45°C
  • Dimensions (H x L x W): 75mm x 230mm x 230mm
  • Weight: 0.8 kg
Key Features
  • DALI dimming for integration with commercial lighting-control systems
  • Power-switchable 23 W and 30 W operating modes
  • Tritone colour selection between 3000 K, 4000 K and 5700 K
  • Recessed diffuser designed to minimise glare
  • IP63 front-face rating for suitable indoor and selected sheltered applications
  • Class II double-insulated construction
  • Painted aluminium housing with opal polycarbonate diffuser
  • Flicker-free driver design
  • Suitable for retrofit replacement of larger compact fluorescent and metal-halide downlights
  • Compatible with Haneco trim adaptor accessories
Professional Installation Requirements
  • Installation and mains electrical connection must be performed by a licensed electrician in accordance with the manufacturer’s instructions and applicable Australian electrical installation requirements. DALI control wiring and commissioning should be completed by suitably qualified personnel.
Applications
  • Commercial offices and boardrooms
  • Retail spaces and showrooms
  • Education facilities
  • Food courts and function areas
  • Medical and general healthcare areas
  • Entrances, hallways and staircases
  • Indoor commercial lighting upgrades and retrofit projects
Standards & Compliance
  • AS/NZS 60598.1 and AS/NZS 60598.2.2 – applicable luminaire safety requirements for recessed luminaires
Environmental Benefits
  • LED technology provides lower energy consumption than equivalent compact fluorescent and metal-halide fittings
  • Long rated life of more than 50,000 hours can reduce replacement frequency and material waste
  • Aluminium housing is durable and recyclable at end of service life
  • DALI control and power switching can support energy-efficient lighting operation
Warranty Information

Haneco OVOLO products are promoted with a 5-year warranty. Haneco’s product warranty provides direct replacement for manufacturing defects, subject to its terms and conditions, correct installation by a licensed electrician and proof of purchase.

Available Now

Available through Haneco and authorised Australian electrical wholesalers and distributors.
