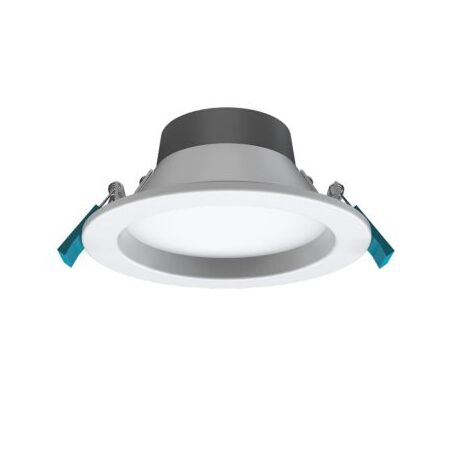

'Ovolo 275mm Downlight 0/1-10V Dimmable Driver 700mA 40W Haneco'

BRAND: Haneco
SKU: OVL275R-H10VD
$197.60 List price: $263.40
+ −
30 Days Return Electricians Unlock Trade Access
'Haneco Ovolo 275mm downlight features 40W output, 700mA 0/1-10V dimmable driver and power switchable operation. Ideal for commercial ceiling lighting.'

Alternatively Known As: Haneco OVOLO OVL275R-H10VD, commercial LED downlight, recessed LED downlight

Technical Specifications
  • Product Code: OVL275R-H10VD
  • SAP Code: 7000349
  • Rated Power: 40W maximum
  • Driver: Remote 0/1-10V dimmable power-switchable driver
  • Driver Output Current: 700mA
  • Input Voltage: 220-240V AC, 50/60Hz
  • Lumen Output: 4072lm at 3000K, 4619lm at 4000K, 4433lm at 5700K
  • Colour Temperature: 3000K / 4000K / 5700K selectable
  • Beam Angle: 110°
  • Colour Rendering Index: CRI >80
  • Power Factor: >0.9
  • Ingress Protection: IP63 from the front face
  • Electrical Classification: Class II
  • Body Material: Aluminium
  • Diffuser Material: Opal polycarbonate
  • Connection: 0.9m flex and plug
  • Operating Temperature: -20°C to 45°C
  • Rated Life: >50,000 hours at Ta25°C, L70
  • Protection: Overload and short-circuit protection
  • Dimensions (H x L x W): 85mm x 275mm x 275mm
  • Weight: 0.9 kg
Key Features
  • 40W high-output commercial LED downlight
  • 700mA 0/1-10V dimmable power-switchable driver
  • Selectable 3000K, 4000K and 5700K colour temperature
  • Large 275mm fascia with 230mm ceiling cutout
  • Remote driver supplied for easier service access
  • Opal polycarbonate diffuser for broad, even light distribution
  • Aluminium housing for thermal management
  • KASTA-compatible lighting control platform
  • Suitable for indoor and sheltered commercial applications
Professional Installation Requirements
  • Installation and mains electrical connection must be completed by a licensed electrician in accordance with the manufacturer's instructions and applicable Australian wiring requirements. Commissioning of 0/1-10V controls should be performed by a suitably qualified electrical contractor.
Applications
  • Commercial offices
  • Retail spaces and showrooms
  • Boardrooms and meeting rooms
  • Education facilities
  • Food courts and function areas
  • Medical and general healthcare facilities
  • Hallways, entrances and staircases
  • Commercial awnings and sheltered areas
Standards & Compliance
  • Applicable luminaire requirements: AS/NZS 60598.1:2017
  • Applicable recessed-luminaire requirements: AS/NZS 60598.2.2:2016
Environmental Benefits
  • LED technology provides lower energy consumption than many traditional commercial light sources
  • Selectable power settings can reduce energy use when maximum output is not required
  • Rated life exceeding 50,000 hours can reduce replacement frequency and material waste
  • Aluminium housing and polycarbonate components are suitable for recovery through appropriate recycling streams
Warranty Information

Haneco direct replacement warranty of 3–5 years against manufacturing defects, subject to the product-specific warranty period and terms. Installation by a licensed electrician, proof of purchase and installation documentation may be required; labour and removal costs are generally excluded unless separately covered.

Available Now

Available through Haneco and authorised Australian electrical wholesalers and distributors.

Lighting Requirement Calculator






This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
