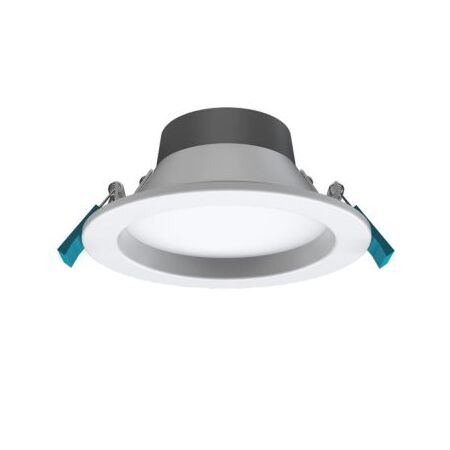

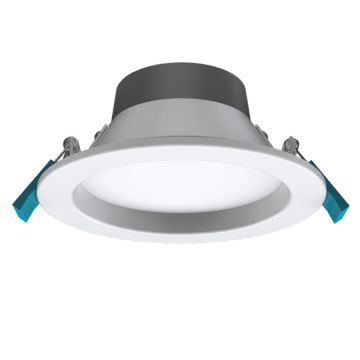

'Ovolo 275mm Downlight with DALI Dimmable Driver 700mA 40W Haneco'

BRAND: Haneco
SKU: OVL275R-HDALI
$231.70 List price: $308.90
+ −
30 Days Return Electricians Unlock Trade Access
'Haneco Ovolo 275mm downlight features 40W output, 700mA DALI dimmable driver and power switchable operation. Ideal for commercial ceiling lighting.'

Alternatively Known As: Haneco OVOLO OVL275R-HDALI, 275mm commercial LED downlight, DALI LED downlight, tri-colour commercial downlight

Technical Specifications
  • Product Code: OVL275R-HDALI
  • SAP Code: 7000348
  • Power: 40W
  • Driver: DALI dimmable, power switchable, 700mA
  • Lumen Output: 4072 lm at 3000K; 4619 lm at 4000K; 4433 lm at 5700K
  • Efficacy: 101 lm/W at 3000K; 120 lm/W at 4000K; 110 lm/W at 5700K
  • Colour Temperature: 3000K / 4000K / 5700K tri-colour selectable
  • Beam Angle: 110°
  • Ingress Protection: IP63 from below
  • Body Material: Aluminium
  • Diffuser Material: Opal polycarbonate
  • Colour Rendering Index: CRI >80
  • Input Voltage: 220–240V AC, 50/60Hz
  • Electrical Classification: Class II
  • Power Factor: >0.9
  • Operating Temperature: -20°C to 45°C
  • Lifespan: Greater than 50,000 hours at Ta 25°C, L70
  • Cut-out Size: 230mm diameter
  • Dimensions (H x L x W): 85mm x 275mm x 275mm
  • Weight: 1 kg
Key Features
  • DALI dimmable driver for integration with commercial lighting control systems
  • Power switchable between 27W and 40W operating modes
  • Tri-colour selectable output of 3000K, 4000K and 5700K
  • High-output 40W setting producing up to 4619 lumens
  • Large 275mm recessed commercial downlight format
  • IP63 ingress protection from below
  • Remote driver configuration
  • Aluminium housing with opal polycarbonate diffuser
  • Suitable for offices, retail spaces, showrooms, meeting rooms, education facilities and other commercial interiors
Professional Installation Requirements
  • Installation and mains electrical connection must be carried out by a licensed electrician in accordance with the manufacturer's installation instructions and AS/NZS 3000. DALI control wiring and system commissioning should be completed by suitably qualified personnel.
Applications
  • Commercial ceiling lighting
  • Offices and boardrooms
  • Retail spaces and showrooms
  • Meeting rooms and function areas
  • Education facilities
  • Medical facilities
  • Entrances, hallways and staircases
  • Food courts and other large interior spaces
Standards & Compliance
  • AS/NZS 60598.1:2017 – Luminaires, general requirements and tests
  • AS/NZS 60598.2.2:2016 – Particular requirements for recessed luminaires
  • AS/NZS 3000 – Electrical installations and wiring rules
Environmental Benefits
  • LED technology provides high light output with lower energy consumption than equivalent conventional commercial lighting
  • Selectable power settings allow the installation to operate at a lower wattage where full output is not required
  • Long projected service life of more than 50,000 hours can reduce replacement frequency and material waste
  • Aluminium housing and polycarbonate diffuser can support material recovery at end of service life
  • DALI control compatibility can support occupancy-based and scheduled lighting control to reduce energy use
Warranty Information

Haneco provides a direct replacement warranty against manufacturing defects, generally 3–5 years depending on the product model and published warranty terms. Warranty claims require proof of purchase and installation by an authorised or licensed electrician; removal and reinstallation costs are generally excluded.

Available Now

Available through Haneco and authorised Australian electrical wholesalers and distributors.
