Home/Electrical/Connection/Metering Accessories/Panelboard Isolation Chassis 24 Way | 250A | IP42 Surface Mount | Orange by NHP

Trade Discount 25%

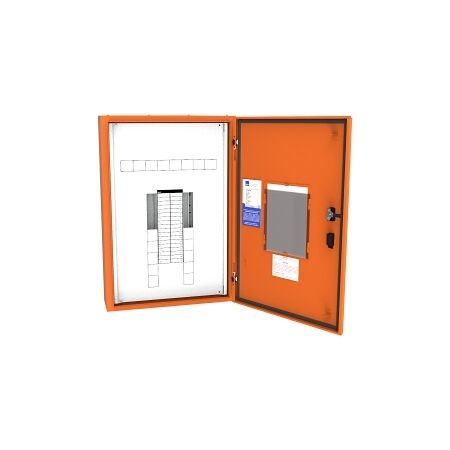

NHP Concept Plus Panelboard Isolation Chassis 648mm IP42 DIN-T 24 Way GB Chassis No MSW Orange

Panelboard Isolation Chassis 24 Way | 250A | IP42 Surface Mount | Orange by NHP

BRAND: NHP

SKU: CPLG24O

$3,023.00 List price: $4,014.10

+ −

30 Days Return Delivery Options

Panelboard isolation chassis with 250A rated current and 24 outgoing ways—ideal for residential and commercial electrical distribution. Built for robust performance, with IP42 protection and easy surface mount installation.

Description
Attachments

Product Name/Title: NHP Concept Plus Panelboard Isolation Chassis 648mm IP42 DIN-T 24 Way GB Chassis No MSW Orange

Brand: NHP

SKU: CPLG24O

Alternatively Known As: NHP Panelboard, Isolation Chassis, Electrical Distribution Board

Technical Specifications

Rated Current: 250 A
Number of Outgoing Ways: 24
Max Rated Operation Voltage: 415 V
Rated Impulse Withstand Voltage: 6 kV
Rated Insulation Voltage: 500 V
Neutral Terminal Block: Yes
Earthing Terminal Block: Yes
Material Housing: Steel
Material Thickness: 1.6 mm
Degree of Protection: IP42
Impact Strength: IK10
Mounting Method: Surface mounted (plaster)
Dimensions (H x L x W): 648mm x 200mm x 600mm
Weight: 15 kg

Key Features

Rated current of 250 A for robust performance.
24 outgoing ways for versatile circuit management.
IP42 rating for protection against solid objects and limited water ingress.
Surface mounted design for easy installation.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices, retail spaces, and industrial applications

Standards & Compliance

Complies with relevant Australian standards for electrical safety.

Environmental Benefits

Durable steel construction reduces the need for frequent replacements.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP Concept Plus Panelboard Isolation Chassis is available now for immediate purchase. Ideal for residential and commercial electrical distribution needs.

CPLG24O-AU-Concept-Plus-Panelboard-Isolation-Chassis-Datasheet.pdf (CPLG24O-AU-Concept-Plus-Panelboard-Isolation-Chassis-Datasheet.pdf, 1,189 Kb) [Download]
