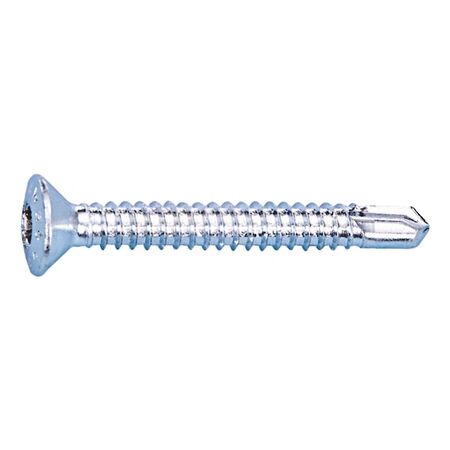

Pias Drilling Screw Zinc Plated Steel 20x6x6mm Wurth
Wurth Pias Drilling Screw Zinc Plated Steel Raised features Zinc-plated steel, blue passivated, Raised countersunk head, flat design and AW drive.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Zinc-plated steel, blue passivated (A3K)
- Head type: Raised countersunk head, flat design
- Drive type: AW drive
- Function: Drilling, threading, and screwing in one step
- Contact pressure during use: approx. 100 N
- Usage: Must be used with drill driver with depth stop; impact drivers not permitted
- Installation: Must be perpendicular to surface
- Note: Galvanized screws suitable only where dampness is not expected
- Dimensions (H x L x W): 20mm x 6mm x 6mm
- Weight: 0.1 kg
Key Features
- Zinc-plated steel with blue passivation (A3K) for corrosion resistance
- Raised countersunk head in flat design for flush finish
- AW drive for secure and efficient screw driving
- Drilling, threading, and screwing-in combined in one work step
- Requires contact pressure of approx. 100 N during use
- Must be used with a suitable drill driver with depth stop
- Impact screwdrivers are not permitted
- Must be attached perpendicular to the surface
Professional Installation Requirements
- Installation should be performed by professionals using appropriate drill drivers with depth stops to ensure correct fastening and avoid damage.
Applications
- Metal construction and sheet metal fastening
- General drilling, threading, and screwing applications in steel
- Suitable for fastening in construction where galvanized screws are appropriate
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing replacement waste
Warranty Information
Warranty as per WURTH standard terms and conditions.
Available Now
The WURTH pias® drilling screw with raised countersunk head and AW drive is available for immediate purchase, ideal for metal construction and fastening applications.
