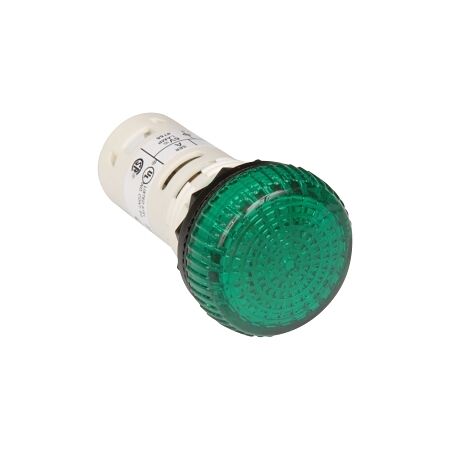

Pilot Light 22.5mm 240 Plastic Panel Green Allen-Bradley

BRAND: Allen-Bradley
SKU: 800FDP3N7
$48.70 List price: $60.70
+ −
30 Days Return Electricians Unlock Trade Access
The Allen-Bradley Pilot Light 22.5mm 240 Plastic Panel Green provides clear indication for industrial control panels and machine operator stations. It operates at 24V AC/DC and features an integrated LED with a plastic front ring. The unit uses screw connection and has a 22.5mm mounting hole. See the full product details below for specifications and installation requirements.
Technical Specifications
  • Operating Voltage: 24 V AC/DC
  • Number of Indicator Lights: 1
  • Material Front Ring: Plastic
  • Degree of Protection: Other
  • Max Shock Acceleration: 100 g
  • Max Vibration Frequency Operational: 2000 Hz
  • Max Vibration Acceleration: 10 m/s²
  • Hole Diameter: 22.5 mm
  • Dimensions (H x L x W): 22.5mm x 30.4mm x 30.4mm
  • Weight: 0.1 kg
Key Features
  • Monolithic design with integrated LED for reliable performance.
  • Screw connection for easy installation.
  • Round lens construction for optimal visibility.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and performance.
Applications
  • Industrial: Control panels, machinery indicators
  • Commercial: Equipment status indication
Standards & Compliance
  • Complies with relevant safety and performance standards.
Environmental Benefits
  • Energy-efficient LED technology reduces power consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 800F Pilot Light is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable indicator lights.

Non-Returnable & Non-Cancellable


FAQ

Q: What voltage does the Allen-Bradley pilot light operate at?
A: It operates at 24V AC/DC.

Q: What type of illumination does this pilot light use?
A: It features an integrated LED for indication.


A clear alternative is available with the 22.5mm 120V AC DC IP65 clear pilot light.

For another colour option, use the 22.5mm 240V AC IP65 blue pilot light.

A further panel indication option is the 22.5mm 240V AC IP65 clear pilot light.

For product selection guidance, refer to the electrical pilot light selection guide.

Licensed electricians can unlock trade access pricing — log in or register to get started.

800FDP3N7-AU-Monolithic-Pilot-Light-22.5mm-Datasheet.pdf (800FDP3N7-AU-Monolithic-Pilot-Light-22.5mm-Datasheet.pdf, 269 Kb) [Download]
