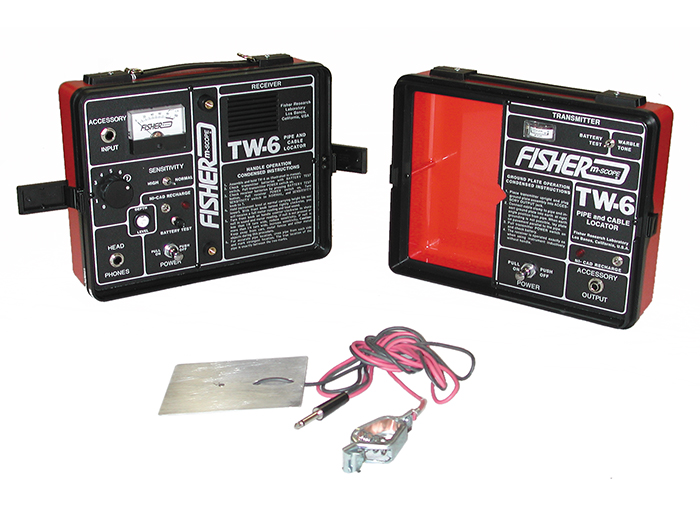

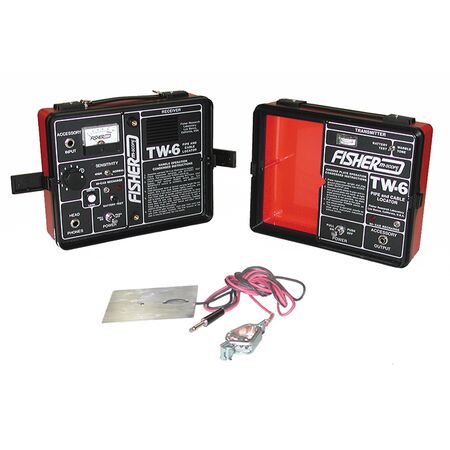

Product Name/Title: TW-6 Split Box Pipe & Cable Tracer
Brand: Aegis
SKU: TW-6
Alternatively Known As: Pipe Locator, Cable Locator, Underground Cable Finder, Underground Pipe Locator, Metallic Object Locator
Technical Specifications
- Receiver Operating Frequency: 81.92 kHz ± 0.005%
- Receiver Batteries: 8 x AA (NEDA 15)
- Receiver Weight: 1.36 kg
- Receiver Sensitivity: Normal 400 uV typical, High 8 uV typical
- Signal-to-noise Ratio: 110 dB
- Headset Impedance: 600 ohms (mono), 8 ohms (stereo)
- Receiver Dimensions: 290 x 230 x 76 mm
- Receiver Operating Temperature: -23°C to +48°C depending on batteries
- Transmitter Operating Frequency: 81.92 kHz ± 0.005%
- Transmitter Batteries: 8 x AA (NEDA 15)
- Transmitter Weight: 1.1 kg
- Transmitter Dimensions: 290 x 230 x 76 mm
- Transmitter Operating Temperature: -23°C to +48°C
- Dimensions (H x L x W): 70mm x 290mm x 230mm
- Weight: 1.36 kg
Key Features
- Affordable, tough and simple to use
- Integrated transmitter and receiver for blind searches
- Noise cancelling circuitry to eliminate power line interference
- Optional accessories available including tracer probe, coupling clamp, handle kit, hard carrying case, sonde, stereo headphones, Fisher phones, and ground rod harness
Professional Installation Requirements
- No professional installation required. User manual provided for safe and effective operation.
Applications
- Locating underground pipes
- Locating underground cables
- Finding manhole covers
- Locating vaults and valve boxes
- Detecting other metallic underground objects
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Helps prevent accidental damage to underground utilities reducing environmental disruption
- Durable design reduces waste through long product life
Warranty Information
Standard manufacturer warranty applies. Please refer to the product manual or supplier for detailed warranty terms.
Available Now
The Aegis TW-6 Split Box Pipe & Cable Tracer is available now for immediate purchase. Ideal for utility workers, construction, and maintenance professionals requiring reliable underground pipe and cable detection.
