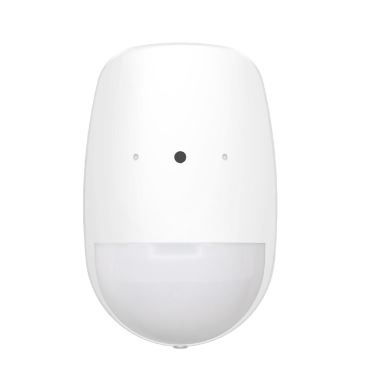

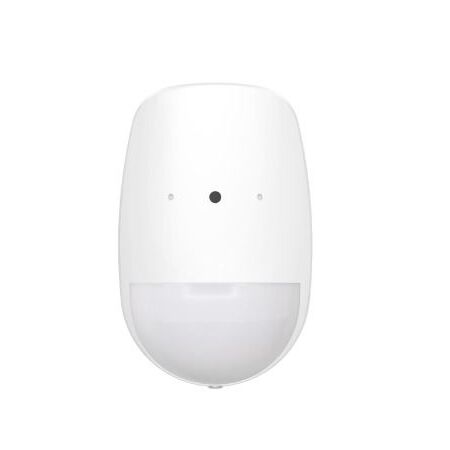

PIR Glass Break Detector | 12m Detection Range | 30KG Pet Immunity | Selectable EOL Resistors | by HIKVISION
The PIR Glass Break Detector is designed for reliable intrusion detection, featuring a 12m PIR detection range and an 8m glass break detection range. With up to 30KG pet immunity, it minimizes false alarms, making it ideal for residential, commercial, and industrial security systems. This detector is built for wired alarm systems and offers selectable EOL resistors for flexible installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PIR Glass Break Detector | 12m Detection Range | 30KG Pet Immunity | Selectable EOL Resistors | by HIKVISION
Brand: HIKVISION
SKU: DS-PDPG12P-EG2
Alternatively Known As: PIR Glass Break Detector, Hybrid PIR Detector, Wired Intrusion Detector, HIKVISION Glass Break Sensor
Technical Specifications
- PIR Detection Range: 12m
- PIR Detection Angle: 85.9°
- Glass Break Detection Range: 8m
- Glass Break Detection Angle: 120°
- Pet Immunity: Up to 30KG
- Voltage Range: 9-16 VDC
- Selectable EOL Resistors
- Polarity Reverse Connection Protection
- Dimensions (H x L x W): 60mm x 40mm x 110mm
- Weight: 0.3 kg
Key Features
- PIR detection range of 12 meters with 85.9° coverage angle
- Glass break detection range of 8 meters with 120° coverage angle
- Up to 30KG pet immunity to reduce false alarms
- Selectable End of Line (EOL) resistors for flexible wiring
- Wide voltage adaptation from 9-16 VDC with polarity reverse connection protection
Professional Installation Requirements
- Professional installation by a qualified security system technician or electrician is recommended to ensure proper wiring and optimal detector performance.
Applications
- Residential security systems
- Commercial and retail premises intrusion detection
- Industrial facility security
- Wired intrusion alarm systems requiring glass break and PIR detection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation reduces power consumption in security systems
- Durable design minimizes waste and replacement frequency
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The HIKVISION AX HYBRID PRO PDPG12P-EG2 PIR Glass Break Detector is available now for immediate purchase. Ideal for enhancing security in residential, commercial, and industrial wired intrusion alarm systems.
