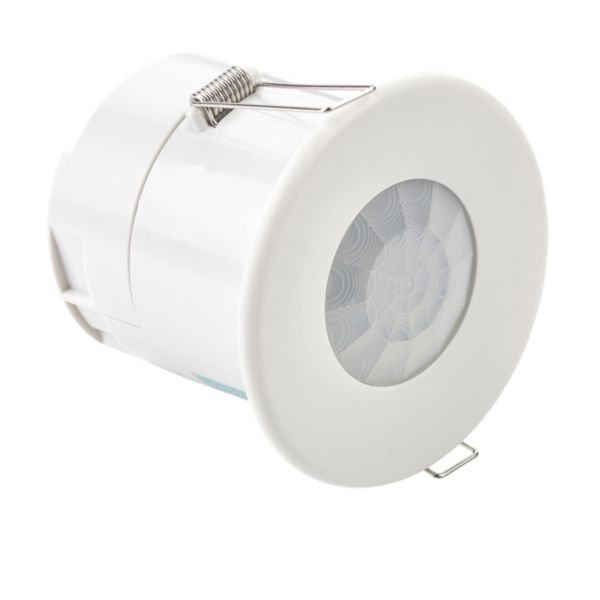

PIR Presence/Absence Detector | Compact Flush Mounted | 2-Channel | IP40 Rated | @Each of 1 | by CP Electronics
The PIR Presence/Absence Detector is a compact, flush-mounted sensor designed for efficient lighting control in commercial and office spaces. With a 360° detection angle and two switching channels, it automatically manages lighting and HVAC systems based on occupancy, ensuring energy savings and enhanced comfort. Ideal for professional installations, this unit is built to meet AS/NZS 3000 standards and features an IP40 rating for durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PIR Presence/Absence Detector | Compact Flush Mounted | 2-Channel | IP40 Rated | @Each of 1 | by CP Electronics
Brand: CP Electronics
SKU: EBDSPIR-PRM-2CH
Alternatively Known As: Ceiling PIR Presence Detector, Flush Mounted PIR Sensor, 2-Channel PIR Detector, Occupancy Sensor, Absence Detector
Technical Specifications
- Detection technology: Passive Infrared (PIR)
- Number of switching zones: 2
- Max switching power: 1380 W
- Max starting current: 80 A
- Nominal voltage: 230 V AC, 50 Hz
- Detection angle: 360° horizontal
- Max reach: 3.5 m sideways and frontally, 7 m diameter on floor
- Switch-on delay: 1 second
- Switch-off delay: 10 seconds
- Standby consumption: approx. 1.05 mA
- Operating temperature range: -10 to 35 °C
- Material: Thermoplastic, halogen free, matt white finish
- Ingress protection: IP40
- Impact resistance: IK05
- Mandatory neutral connection required
- Terminal capacity: 2.5 mm²
- Dimensions (H x L x W): 76mm x 70mm x 76mm
- Weight: 0.15 kg
Key Features
- Compact low profile design for narrow ceiling voids
- Flush-mounted PIR sensor with 2 switching channels
- Self-contained unit with no external control boxes required
- Pluggable connections for reduced installation time
- Infrared programmable with optional remote handset
- Switching with lux level sensing and absence detection
- Adjustable response sensitivity and luminosity
- 360° horizontal detection angle with 7m diameter floor reach
- IP40 rated with IK05 impact resistance
- Suitable for nominal voltage 230V AC, 50Hz
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal sensor performance.
Applications
- Lighting control in commercial and office buildings
- Automatic control of heating and ventilation systems
- Energy saving through presence and absence detection
- Staircase lighting control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically controlling lighting and HVAC systems based on occupancy
- Helps lower carbon footprint through efficient energy management
- Supports sustainable building practices by optimizing resource use
Warranty Information
Standard manufacturer warranty applies; typically 2 years against manufacturing defects.
Available Now
The CP Electronics PRM Switching Compact IP40 Ceiling Flush Mounted PIR Presence/Absence Detector 2-Channel is available for immediate purchase, ideal for commercial and office lighting and HVAC control applications.
