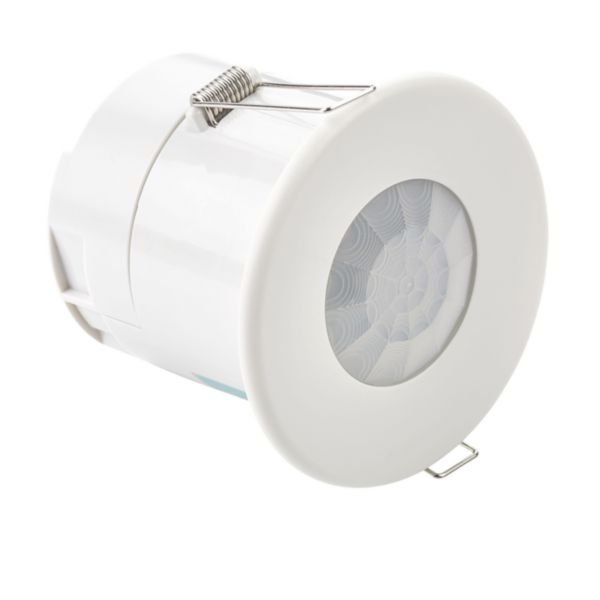

PIR Presence/Absence Detector | Compact Design | IP40 Rated | 360° Detection | @EA of 1 | by CP Electronics
The PIR Presence/Absence Detector is designed for efficient energy management in commercial and residential spaces. With a compact design and IP40 rating, it features a 360° detection angle and a maximum reach of 3.5 m, making it ideal for automatic control of lighting and HVAC systems. This self-contained unit ensures quick installation and is perfect for offices, corridors, and meeting rooms, enhancing both security and energy savings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PIR Presence/Absence Detector | Compact Design | IP40 Rated | 360° Detection | @EA of 1 | by CP Electronics
Brand: CP Electronics
SKU: EBDSPIR-PRM-L3
Alternatively Known As: Ceiling PIR Presence Detector, Flush Mounted PIR Sensor, IP40 PIR Occupancy Sensor, CP Electronics PRM PIR Detector
Technical Specifications
- Detection technology: Passive infrared (PIR)
- Voltage: 230 V AC, 50 Hz
- Max switching power: 2300 W
- Switch-on delay: 1 second
- Switch-off delay: 10 seconds
- Detection angle: 360° horizontal
- Max reach: 3.5 m sideways and frontally, 7 m diameter on floor
- Response value luminosity adjustable: 0-2000 lx
- Standby consumption: approx. 3.9 mA
- Operating temperature: -30 to 35 °C
- IP rating: IP40
- Impact rating: IK05
- Material: Halogen free thermoplastic, matt white (RAL 9002)
- Connection: Mandatory neutral, terminals capacity 2.5 mm²
- Remote control: Infrared programmable with supplied handset
- Dimensions (H x L x W): 76mm x 70mm x 76mm
- Weight: 0.1 kg
Key Features
- Compact low profile design for narrow ceiling voids
- Self-contained unit with no external control boxes required
- Pluggable connections for reduced installation time
- Infrared programmable with optional remote handset
- Switching with lux level sensing and absence detection functionality
- 360° horizontal detection angle with 3.5 m max reach sideways and frontally
- IP40 rated for protection against solid objects
- Halogen free thermoplastic material with matt white finish
- Mandatory neutral connection and suitable for 230 V AC supply
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and correct wiring.
Applications
- Automatic control of lighting, heating, and ventilation loads in commercial and residential buildings
- Ceiling flush mounting in offices, corridors, and meeting rooms
- Presence and absence detection for energy saving and security
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically switching off lights and HVAC when no presence is detected
- Supports sustainable building management through efficient occupancy sensing
Warranty Information
Standard manufacturer warranty applies, typically 2 years against defects.
Available Now
The CP Electronics PRM Switching Compact IP40 Ceiling Flush Mounted PIR Presence/Absence Detector is available for immediate purchase, ideal for energy-efficient lighting and HVAC control in commercial and residential ceiling installations.
