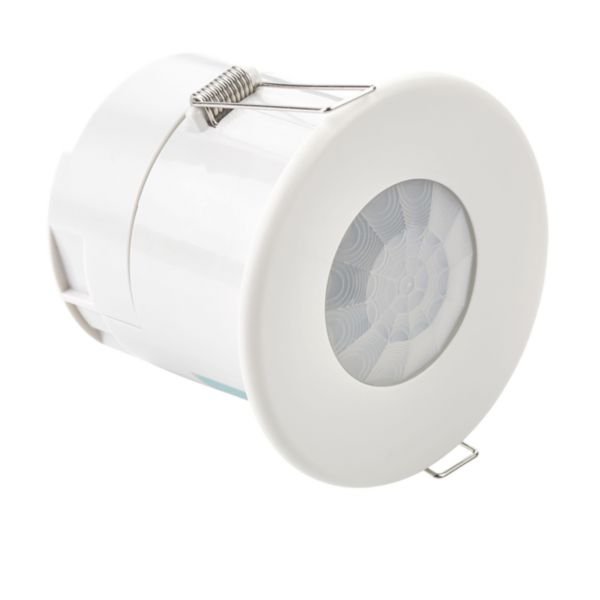

PIR Presence/Absence Detector | Compact Design | IP40 Rated | 360° Detection | @EA of 1 | by CP Electronics
The PIR Presence/Absence Detector is designed for efficient lighting control in commercial and office spaces. With a compact design and IP40 rating, it features 360° detection and can switch up to 10 drivers or ballasts. Ideal for energy-saving applications, this sensor automatically adjusts based on presence detection, ensuring optimal energy management and reduced carbon footprint.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PIR Presence/Absence Detector | Compact Design | IP40 Rated | 360° Detection | @EA of 1 | by CP Electronics
Brand: CP Electronics
SKU: EBDSPIR-PRM
Alternatively Known As: Ceiling PIR Presence Detector, Flush Mounted PIR Sensor, Occupancy Sensor, Absence Detector, PIR Ceiling Sensor
Technical Specifications
- Detection technology: Passive Infrared (PIR)
- Voltage: 230 V AC, 50 Hz
- Max switching power: 460 W
- Max starting current: 80 A
- Detection angle: 360° horizontal
- Max reach: 3.5 m sideways and frontally, 7 m diameter on floor
- IP rating: IP40
- Impact rating: IK05
- Operating temperature: -10 to 35 °C
- Standby current: approx. 3.9 mA
- Mounting method: Flush-mounted in ceiling tile or surface box
- Material: Thermoplastic, halogen free, matt white finish
- Response value luminosity adjustable: 0-2000 lx
- Switch-off delay: 10 seconds
- Switch-on delay: 1 second
- Presence and absence detection with lux level sensing
- Remote control supplied for manual override
- Dimensions (H x L x W): 76mm x 69.5mm x 76mm
- Weight: 0.15 kg
Key Features
- Compact low profile design for flush ceiling mounting
- Self-contained unit with no external control boxes required
- Pluggable connections for reduced installation time
- Infrared programmable with optional remote handset
- Presence and absence detection with lux level sensing
- Switching capability for up to 10 drivers/ballasts
- Adjustable response sensitivity and luminosity
- IP40 rated for protection against solid objects
- Suitable for mounting height up to 2.8 meters
- 360° detection angle with 7m diameter floor reach
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and correct integration with lighting and HVAC systems.
Applications
- Lighting control in commercial and office buildings
- Automatic control of heating and ventilation systems
- Energy saving in presence/absence detection scenarios
- Suitable for ceiling flush mounting in narrow ceiling voids
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically switching lighting and HVAC systems based on presence detection
- Helps lower carbon footprint through efficient energy management
- Minimizes unnecessary power usage in unoccupied spaces
Warranty Information
Standard manufacturer warranty applies, typically 2 years against defects.
Available Now
The CP Electronics PRM Switching Compact IP40 Ceiling Flush Mounted PIR Presence/Absence Detector is available for immediate purchase, ideal for commercial and office lighting control applications.
