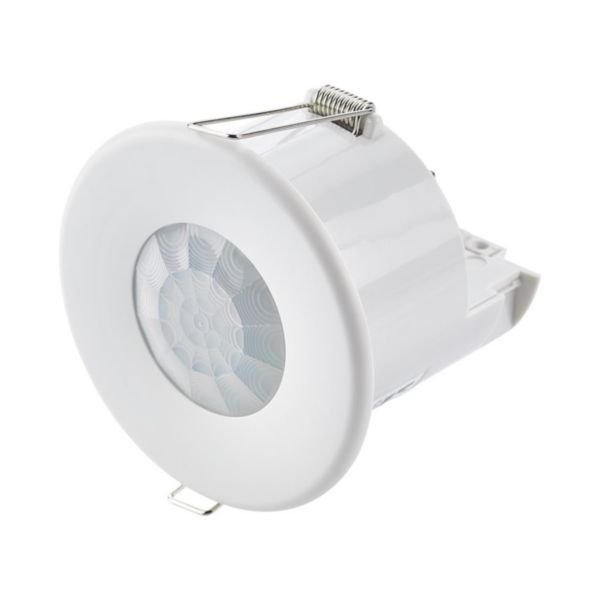

PIR Presence/Absence Detector | Compact Design | IP40 Rated | 7m Detection Range | @EA of 1 | by CP Electronics
The PIR Presence/Absence Detector is a compact solution for automated lighting control, featuring a 7m detection range and IP40 rating. Ideal for commercial spaces, this ceiling-mounted sensor offers two ELV switch inputs for manual override and is fully programmable via KNX ETS software, ensuring efficient energy management and enhanced user convenience.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PIR Presence/Absence Detector | Compact Design | IP40 Rated | 7m Detection Range | @EA of 1 | by CP Electronics
Brand: CP Electronics
SKU: EBDSPIR-KNX
Alternatively Known As: KNX PIR Presence Detector, KNX Occupancy Sensor, Ceiling Mounted PIR Sensor, KNX Presence Sensor
Technical Specifications
- Detection method: Passive Infrared (PIR)
- Mounting: Flush or surface mount
- Detection range: Up to 7 meters at 2.8m height
- Switch inputs: Two ELV inputs for manual override
- Programming: Via KNX ETS software and IR handset
- IP Rating: IP40
- Background monitoring: No
- Acoustic sensor: No
- Connection cable: Not included
- Dimensions (H x L x W): 40mm x 60mm x 60mm
- Weight: 0.2 kg
Key Features
- Compact PIR detector suitable for flush or surface mounting
- Detection range up to 7m at 2.8m mounting height
- Two ELV switch inputs for manual override of dimming levels or light on/off
- KNX programming mode accessible via IR handset or push switch
- Programmable logic block for customized occupancy and lighting control
- Full scene selection functionality via UHS7 infrared handset
- Fully programmable using KNX ETS commissioning software
- Manufactured in the UK
Professional Installation Requirements
- Installation and configuration should be performed by a qualified electrician or KNX system integrator to ensure compliance with electrical standards and proper system integration.
Applications
- Commercial and office buildings for automated lighting control
- Conference rooms and meeting spaces
- Corridors and common areas
- Energy management systems integration
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps reduce energy consumption by automatically switching off lights when areas are unoccupied
- Supports energy-efficient building management systems
Warranty Information
3 years warranty against manufacturing defects.
Available Now
The CP Electronics KNX Compact IP40 Ceiling Flush Mounted PIR Presence/Absence Detector is available now for immediate purchase. Ideal for commercial and integrated building lighting control applications.
