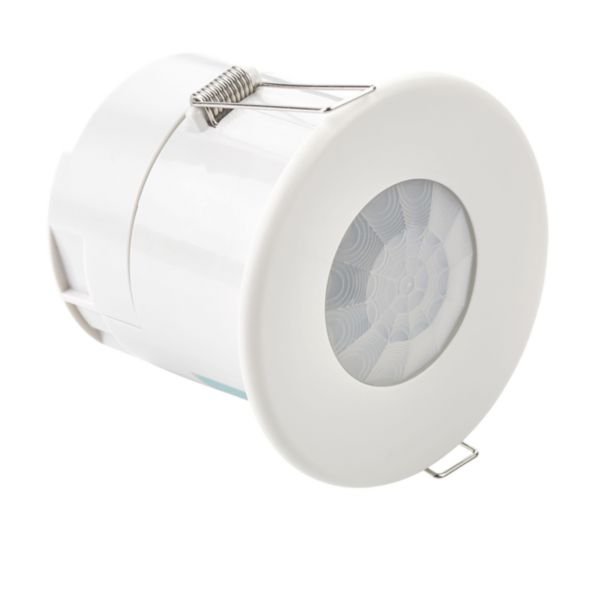

PIR Presence/Absence Detector | IP40 Rated | 360° Detection Angle | Volt Free Contact | @Each of 1 | by CP Electronics
The PIR Presence/Absence Detector is designed for efficient energy management, featuring a 360° detection angle and IP40 rating for reliable performance. Ideal for automatic control of lighting and HVAC systems in commercial and residential settings, this compact unit ensures energy savings and enhanced security with its volt-free contact output.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PIR Presence/Absence Detector | IP40 Rated | 360° Detection Angle | Volt Free Contact | @Each of 1 | by CP Electronics
Brand: CP Electronics
SKU: EBDSPIR-PRM-VFC
Alternatively Known As: Ceiling PIR Presence Detector, Flush Mounted PIR Sensor, Volt Free Contact PIR Detector, Occupancy Sensor, Absence Detector
Technical Specifications
- Detection technology: Passive infrared (PIR)
- Detection angle: 360° horizontal
- Detection range: 3.5 m sideways and frontally, 7 m diameter on floor
- Voltage: 230 V AC, 50 Hz
- Max switching power: 1380 W
- Max starting current: 80 A
- Switch-on delay: 1 second
- Switch-off delay: 10 seconds
- Standby consumption: approx. 3.17 mA
- Degree of protection: IP40
- Impact resistance: IK05
- Material: Thermoplastic, halogen free, matt white finish
- Mounting method: Flush-mounted in ceiling tiles
- Operating temperature range: -10 to 35 °C
- Terminals capacity: 2.5 mm²
- Mandatory neutral connection required
- Dimensions (H x L x W): 76mm x 70mm x 76mm
- Weight: 0.15 kg
Key Features
- Compact low profile design suitable for narrow ceiling voids
- Self-contained unit with no external control boxes required
- Pluggable connections for reduced installation time
- Infrared programmable with optional remote handset
- Switching with lux level sensing and absence detection functionality
- Presence detector using passive infrared technology
- 360° horizontal detection angle with 7 m diameter floor reach
- IP40 rated for protection against solid objects
- Volt free contact output for flexible integration
- Suitable for flush mounting in ceiling tiles
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal sensor performance.
Applications
- Automatic control of lighting, heating, and ventilation loads in commercial and residential buildings
- Ceiling flush mounting in offices, corridors, meeting rooms, and classrooms
- Presence and absence detection for energy saving and security systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically controlling lighting and HVAC systems based on presence detection
- Helps lower carbon footprint through efficient energy management
- Supports sustainable building practices by minimizing unnecessary power usage
Warranty Information
Standard manufacturer warranty of 2 years against defects in materials and workmanship.
Available Now
The CP Electronics PRM Switching Compact IP40 Ceiling Flush Mounted PIR Presence/Absence Detector Volt Free Contact is available for immediate purchase, ideal for energy-efficient lighting and HVAC control in commercial and residential ceiling installations.
