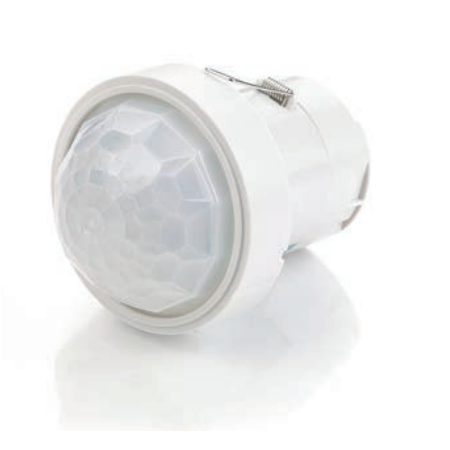

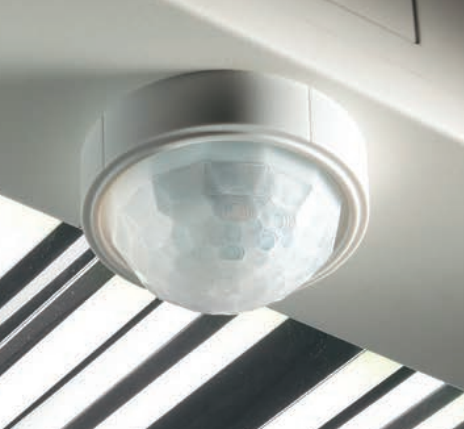

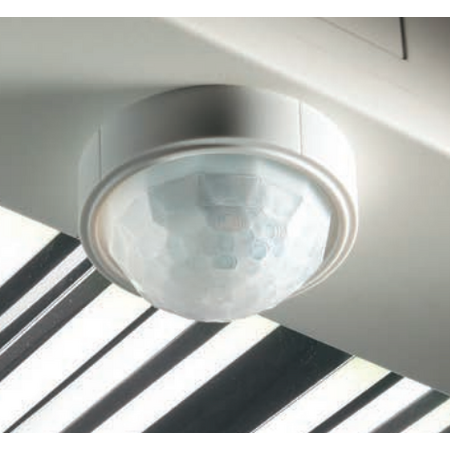

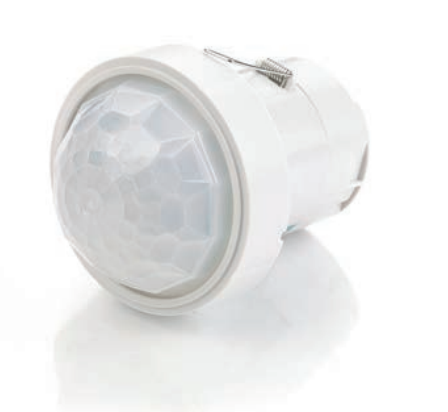

PIR Presence/Absence Detector | IP40 Rated | 40m Detection Range | Flush Mounted Design | @EA of 1 | by CP Electronics
The PIR Presence/Absence Detector is designed for high bay lighting control, featuring an impressive 40m detection range and IP40 rating for protection. Ideal for warehouses and industrial spaces, this flush-mounted sensor ensures energy-efficient lighting management by detecting presence and absence, reducing energy consumption and enhancing safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PIR Presence/Absence Detector | IP40 Rated | 40m Detection Range | Flush Mounted Design | @EA of 1 | by CP Electronics
Brand: CP Electronics
SKU: EBDHS-PRM
Alternatively Known As: High Bay PIR Presence Detector, Flush Mounted PIR Sensor, High Level PIR Detector, Warehouse PIR Sensor
Technical Specifications
- Technology: Passive Infrared (PIR)
- Detection range: Up to 40m diameter on floor
- Maximum mounting height: 20m
- Detection angle horizontal: 360°
- Voltage: 230V AC, 50Hz
- Max switching power: 2300W
- Switch-on delay: 1 second
- Switch-off delay: 10 seconds
- Standby consumption: approx. 3.68 mA
- Degree of protection: IP40
- Material: Thermoplastic, halogen free
- Colour: White (RAL 9002)
- Mounting method: Flush-mounted
- Operating temperature: -10 to 35 °C
- Response value luminosity adjustable: 0-2000 lx
- Forced switch off: Yes
- Remote operation: Yes, supplied remote control
- Dimensions (H x L x W): 88mm x 112mm x 88mm
- Weight: 0.3 kg
Key Features
- Groundbreaking detection range up to 40m at 15m mounting height
- Maximum mounting height up to 20m
- Unique lens technology for high sensitivity
- IP40 rated for protection
- Adjustable masking shields to tailor detection zones
- Verify feature reduces false triggering
- Fully programmable via UHS5 or UNLCDHS handsets
- Switching with lux level sensing
- Absence detection functionality
- Flush-mounted design
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and optimal sensor performance.
Applications
- High bay lighting control in warehouses
- Industrial and commercial high ceiling areas
- Energy-efficient lighting management in large spaces
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reduces energy consumption by controlling lighting based on presence and absence detection
- Programmable settings optimize lighting usage, minimizing waste
- Supports sustainable building management by lowering carbon footprint
Warranty Information
Standard manufacturer warranty applies; typically 2 years against manufacturing defects.
Available Now
The CP Electronics PRM Switching IP40 High Bay Flush Mounted PIR Presence/Absence Detector is available for immediate purchase, ideal for high bay lighting control in warehouses and industrial facilities.
