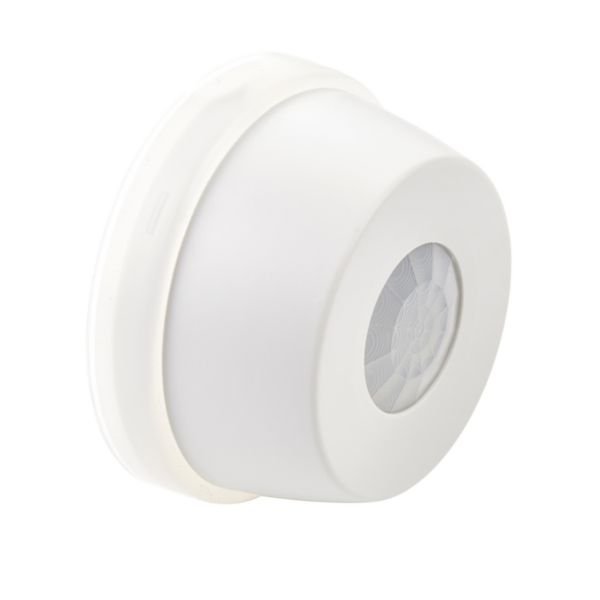

PIR Presence/Absence Detector | IP54 Rated | 360° Detection Angle | Surface Mounted | @EA of 1 | by CP Electronics
The PIR Presence/Absence Detector is designed for efficient energy management, featuring a 360° detection angle and an IP54 rating for reliable performance. Ideal for automatic control of lighting and HVAC systems in commercial and residential settings, this compact surface-mounted unit ensures optimal energy usage while providing convenience and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PIR Presence/Absence Detector | IP54 Rated | 360° Detection Angle | Surface Mounted | @EA of 1 | by CP Electronics
Brand: CP Electronics
SKU: EBDSM-PRM
Alternatively Known As: PIR Presence Detector, Ceiling Mounted PIR Sensor, Occupancy Sensor, Absence Detector, Surface Mounted PIR Detector
Technical Specifications
- Detection technology: Passive Infrared (PIR)
- Degree of protection: IP40 standard, IP54 with gasket
- Detection angle: 360° horizontal
- Detection range: 7 m diameter on floor, max reach 3.5 m sideways and frontally
- Nominal voltage: 230 V AC, 50 Hz
- Max switching power: 2300 W
- Switch-on delay: 1 second
- Switch-off delay: 10 seconds
- Standby consumption: approx. 3.9 mA
- Operating temperature range: -10 to 35 °C
- Material: Halogen free thermoplastic, matt white finish
- Mounting method: Surface mounted on ceiling
- Remote control: Infrared remote handset supplied for override and programming
- Dimensions (H x L x W): 94mm x 50mm x 94mm
- Weight: 0.15 kg
Key Features
- Compact surface mounted PIR detector with IP54 rating when fitted with gasket
- Self-contained unit requiring no external control boxes
- Infrared programmable with optional remote handset for override
- Switching with lux level sensing and absence detection functionality
- Suitable for switching a wide range of luminaires
- Surface mounted installation with easy back plate fitting
- Halogen free thermoplastic material with matt white finish
- 360° horizontal detection angle with 7 m diameter floor reach
- Forced switch off and staircase light controller functionality
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal sensor performance.
Applications
- Automatic control of lighting, heating, and ventilation loads in commercial and residential buildings
- Ideal for ceiling surface mounting in offices, corridors, and meeting rooms
- Suitable for presence and absence detection to optimize energy usage
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically controlling lighting and HVAC systems based on presence detection
- Helps lower carbon footprint through efficient energy management
- Halogen free materials contribute to safer disposal and reduced environmental impact
Warranty Information
Standard manufacturer warranty applies, typically 2 years against manufacturing defects.
Available Now
The CP Electronics PRM Switching Compact IP54 Ceiling Surface Mounted PIR Presence/Absence Detector is available for immediate purchase, ideal for energy-efficient lighting control in commercial and residential ceiling applications.
