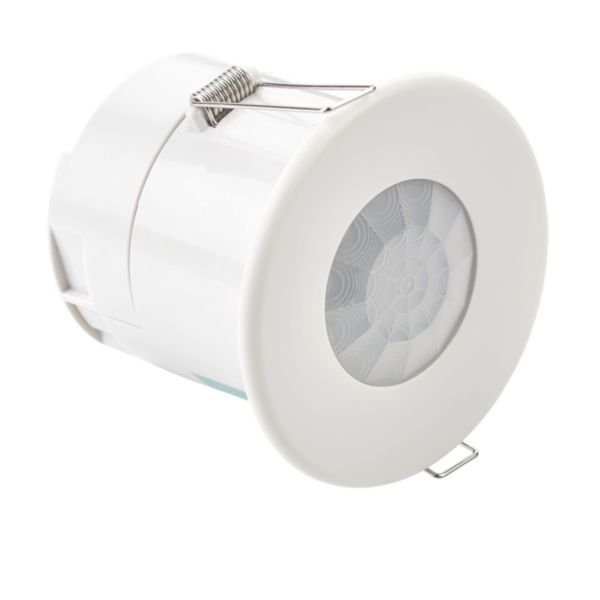

PIR Presence/Absence Detector | IP55 Rated | 360° Detection Angle | Compact Design | @EA of 1 | by CP Electronics
The PIR Presence/Absence Detector is designed for automatic lighting control, featuring an IP55 rating for dust and water protection, and a 360° detection angle with a 7m range. Ideal for commercial and office environments, this compact unit ensures energy savings by automatically switching lights and HVAC systems based on presence detection, making it a smart choice for efficient energy management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PIR Presence/Absence Detector | IP55 Rated | 360° Detection Angle | Compact Design | @EA of 1 | by CP Electronics
Brand: CP Electronics
SKU: EBDSPIR-PRM-IP
Alternatively Known As: Ceiling PIR Presence Detector, Flush Mounted PIR Sensor, IP55 PIR Motion Sensor, Automatic Lighting Presence Detector
Technical Specifications
- Detection technology: Passive Infrared (PIR)
- Detection angle: 360° horizontal
- Detection range diameter on floor: 7 meters
- Nominal voltage: 230V AC, 50Hz
- Max switching power: 2300W
- Max starting current: 80A
- Switch-on delay: 1 second
- Switch-off delay: 10 seconds
- Standby consumption: approx. 3.9mA
- Operating temperature range: -30°C to 35°C
- IP rating: IP55
- Impact rating: IK05
- Material: Halogen free thermoplastic, matt white finish
- Mounting method: Flush-mounted in ceiling tiles or surface box
- Response value luminosity adjustable: 0-2000 lux
- Remote operation: Yes, with supplied remote control handset
- Dimensions (H x L x W): 76mm x 69.5mm x 76mm
- Weight: 0.15 kg
Key Features
- Compact low profile design for narrow ceiling voids
- Self-contained unit with no external control boxes required
- Pluggable connections for reduced installation time
- Infrared programmable with optional remote handset
- Switching with lux level sensing and absence detection
- IP55 rated for dust and water protection
- 360° horizontal detection angle with 7m diameter floor reach
- Forced switch off and staircase light controller functionality
- Halogen free thermoplastic material with matt white finish
- Suitable for nominal voltage 230V AC at 50Hz frequency
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and correct mounting for optimal sensor performance.
Applications
- Automatic lighting control in commercial and office buildings
- Energy saving presence detection for HVAC systems
- Staircase and corridor lighting control
- Suitable for flush mounting in ceiling tiles or surface mounting boxes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically switching lighting and HVAC systems based on presence detection
- Helps lower carbon footprint through efficient energy management
- IP55 rating ensures durability and long product life, reducing waste
Warranty Information
Standard manufacturer warranty applies; typically 2 years against defects.
Available Now
The CP Electronics PRM Switching Compact IP55 Ceiling Flush Mounted PIR Presence/Absence Detector is available for immediate purchase, ideal for commercial and office lighting control applications.
