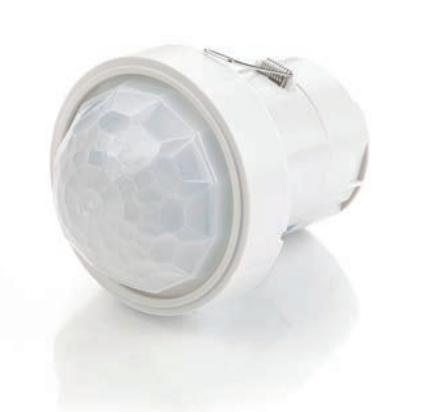

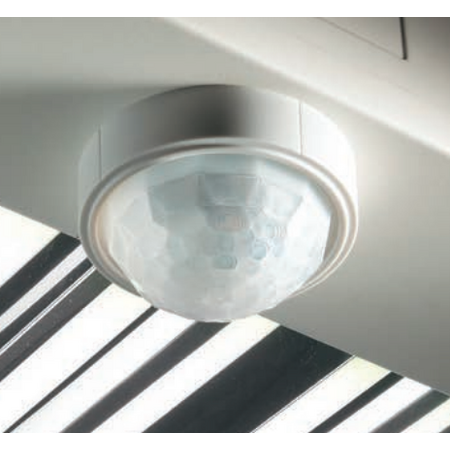

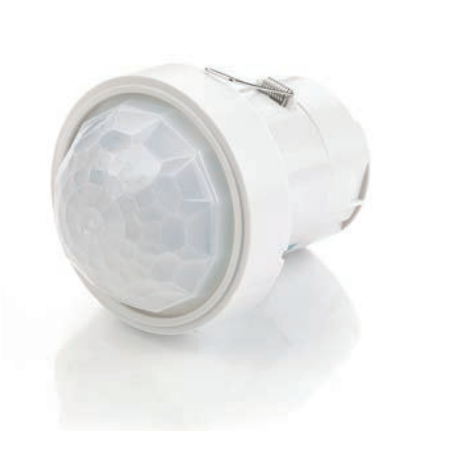

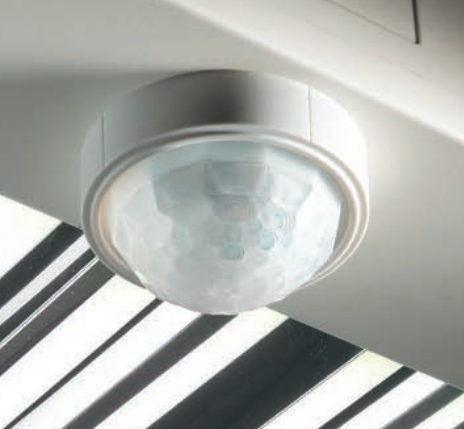

PIR Presence/Absence Detector | IP65 Rated | 40m Detection Range | Flush Mounted | @EA of 1 | by CP Electronics
The PIR Presence/Absence Detector is designed for high bay lighting control, featuring an impressive 40m detection range and IP65 rating for dust and water protection. Ideal for industrial and commercial applications, this sensor operates in temperatures from -30°C to 35°C, ensuring reliable performance in various environments. With programmable features and a flush-mounted design, it enhances energy efficiency while reducing your carbon footprint.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PIR Presence/Absence Detector | IP65 Rated | 40m Detection Range | Flush Mounted | @EA of 1 | by CP Electronics
Brand: CP Electronics
SKU: EBDHS-PRM-LT30
Alternatively Known As: High Bay PIR Presence Detector, Low Temperature PIR Sensor, IP65 PIR Motion Sensor, Flush Mounted PIR Detector, Industrial Presence Detector
Technical Specifications
- Detection range: up to 40m diameter on floor
- Maximum mounting height: 20m
- Operating temperature: -30°C to 35°C
- IP rating: IP65
- Impact rating: IK05
- Voltage: 230V AC, 50Hz
- Max switching power: 2300W
- Switch-on delay: 1 second
- Switch-off delay: 10 seconds
- Detection angle: 360° horizontal
- Standby consumption: approx. 3.68 mA
- Material: Halogen free thermoplastic
- Colour: White (RAL 9002)
- Mounting method: Flush-mounted
- Response value luminosity adjustable: 0-2000 lux
- Forced switch off and absence detection supported
- Programmable via handset (UHS5 or UNLCDHS)
- Dimensions (H x L x W): 88mm x 112mm x 88mm
- Weight: 0.3 kg
Key Features
- Best in industry detection range up to 40m at 15m mounting height
- Maximum mounting height up to 20m
- Operating temperature range from -30ºC to 35ºC
- IP65 rated for protection against dust and water
- Unique lens technology for high sensitivity within detection range
- Available in Analogue / Digital Dimming and Switching versions
- Adjustable masking shields to tailor detection zones
- Verify feature reduces false triggering
- Compatible with UHS5 or UNLCDHS handsets for easy programming
- Switching with lux level sensing and programmable via handset
- Absence detection functionality
- Flush-mounted installation
- Halogen free thermoplastic material with matt white finish
- 360° horizontal detection angle
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal sensor performance.
Applications
- High bay lighting control in warehouses and industrial spaces
- Cold storage warehousing lighting control
- High level flush mounted presence detection for energy saving
- Staircase light control in commercial and industrial buildings
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by controlling lighting based on presence and absence detection
- Helps lower carbon footprint through efficient lighting management
- Durable IP65 rated design reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; typically 2 years against manufacturing defects.
Available Now
The CP Electronics PRM Switching Low Temp IP65 High Bay PIR Presence/Absence Detector is available for immediate purchase, ideal for industrial and commercial high bay lighting control applications.
