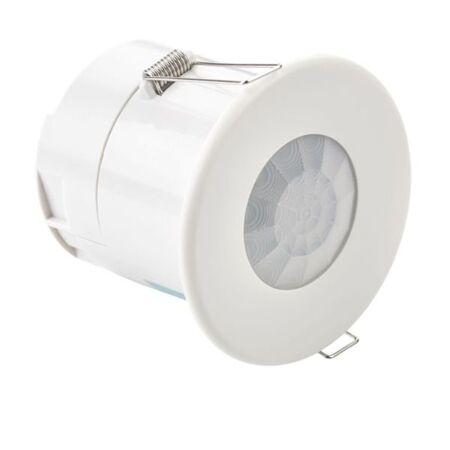

PIR Presence Detector | Compact IP40 | Flush Mounted with 3m Lead | by CP Electronics
The PIR Presence Detector is a compact, low-profile sensor designed for flush or surface mounting, perfect for lighting control in commercial and office spaces. With an IP40 rating and a 3-meter lead, it features passive infrared detection, manual lux level adjustment, and time delay functions, ensuring energy efficiency by automatically switching off lights and HVAC systems when areas are unoccupied.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PIR Presence Detector | Compact IP40 | Flush Mounted with 3m Lead | by CP Electronics
Brand: CP Electronics
SKU: EBDSPIR-L3
Alternatively Known As: PIR Ceiling Sensor, Presence Detector, Occupancy Sensor, Ceiling Mounted PIR Sensor
Technical Specifications
- IP Rating: IP40
- Detection Type: Passive Infrared (PIR)
- Mounting: Flush ceiling or surface mount with box
- Lead Length: 3 meters
- Functions: Switching with lux level sensing and time delay
- Design: Low profile, self-contained unit
- Connection: Pluggable connections
- Dimensions (H x L x W): 30mm x 60mm x 60mm
- Weight: 0.1 kg
Key Features
- Compact low profile design suitable for narrow ceiling voids
- Flush mounted or surface mounted using a mounting box
- Self-contained unit with no external control boxes required
- Pluggable connections for reduced installation time
- Manual adjustment for lux level sensing and time delay function
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal sensor performance.
Applications
- Lighting control in commercial and office buildings
- Automatic control of heating and ventilation systems
- Energy saving in indoor environments with occupancy detection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically switching off lighting and HVAC when areas are unoccupied
- Helps lower carbon footprint through efficient energy management
Warranty Information
Standard manufacturer warranty applies, typically 2 years.
Available Now
The CP Electronics Basic Switching Compact IP40 Ceiling Flush Mounted PIR Presence Detector with 3m Lead is available for immediate purchase, ideal for commercial and office lighting and HVAC control applications.
