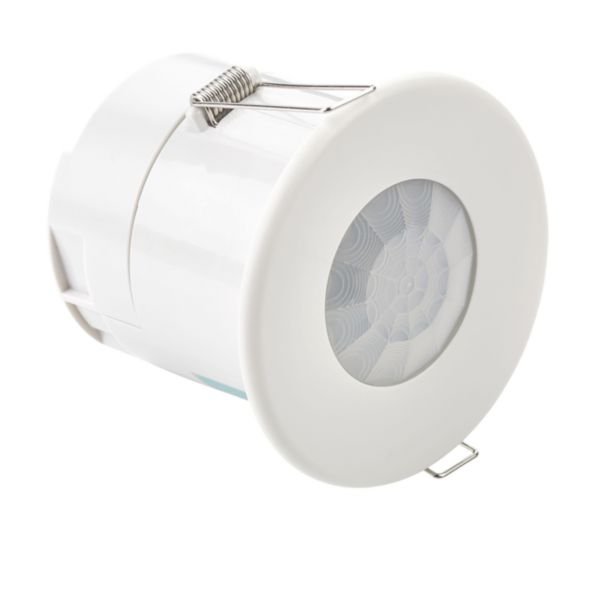

PIR Presence Detector | Compact Low Profile Design | 360° Detection Angle | IP40 Rated | @EA of 1 | by CP Electronics
The PIR Presence Detector is designed for automatic control of lighting and HVAC systems, featuring a compact low profile for flush mounting and a 360° detection angle. Ideal for energy-saving applications in commercial and residential buildings, this detector operates on low voltage (12-24V AC/DC) and includes lux level sensing for optimal performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PIR Presence Detector | Compact Low Profile Design | 360° Detection Angle | IP40 Rated | @EA of 1 | by CP Electronics
Brand: CP Electronics
SKU: EBDSPIR-PRM-LV
Alternatively Known As: PIR Presence Detector, Ceiling PIR Sensor, Flush Mounted PIR Sensor, Low Voltage PIR Detector, Occupancy Sensor
Technical Specifications
- Detection technology: Passive Infrared (PIR)
- Operating voltage: 12-24V AC/DC
- Detection angle: 360° horizontal
- Max detection range: 3.5 m sideways and frontally, 7 m diameter on floor
- IP rating: IP40
- Impact rating: IK05
- Operating temperature: -10°C to 35°C
- Standby current: approx. 11.3 mA
- Switching power max: 384 W
- Response value luminosity adjustable: 0-2000 lx
- Mounting method: Flush-mounted in ceiling tiles or surface box
- Material: Halogen free thermoplastic, matt white finish
- Connection: Pluggable terminals, 2.5 mm² capacity
- Forced switch off and staircase light control supported
- Dimensions (H x L x W): 76mm x 69.5mm x 76mm
- Weight: 0.1 kg
Key Features
- Compact low profile design for flush mounting in ceiling tiles or surface mounting box
- Self-contained unit with no external control boxes required
- Pluggable connections for reduced installation time
- Infrared programmable with optional remote handset for override and setup
- Switching with lux level sensing and absence detection functionality
- Presence detection with 360° horizontal detection angle
- IP40 rated for protection against solid objects greater than 1mm
- Halogen free thermoplastic material with matt white finish
- Suitable for low voltage 12-24V AC/DC operation
- Forced switch off and staircase light control features
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal sensor performance.
Applications
- Automatic control of lighting, heating, and ventilation loads in commercial and residential buildings
- Ceiling flush mounting in narrow ceiling voids for presence and absence detection
- Ideal for energy saving in offices, corridors, and staircases
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically controlling lighting and HVAC systems based on presence detection
- Helps lower carbon footprint through efficient energy management
- Halogen free materials contribute to safer disposal and reduced environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to CP Electronics for specific warranty terms.
Available Now
The CP Electronics PRM Switching Compact IP40 Ceiling Flush Mounted PIR Presence/Absence Detector Low Voltage is available for immediate purchase, ideal for energy-efficient lighting and HVAC control in commercial and residential buildings.
