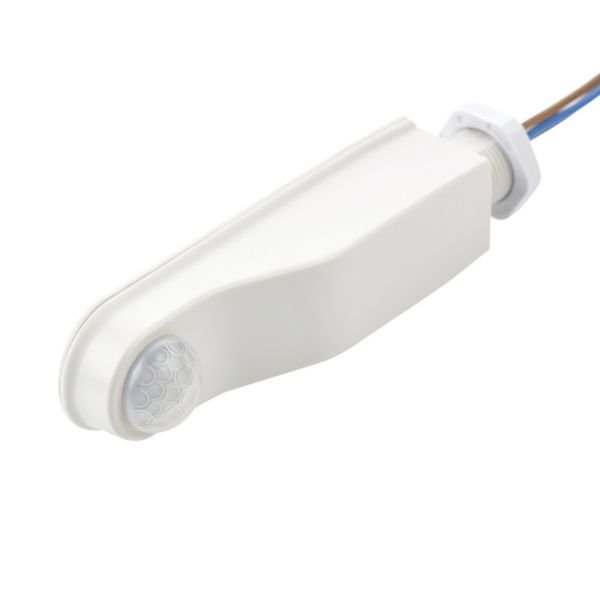

PIR Presence Detector | IP65 Rated | 360° Detection Angle | Easy Retrofit | @Each of 1 | by CP Electronics
The PIR Presence Detector is designed for efficient lighting control, featuring IP65 protection and a 360° detection angle. Ideal for both indoor and outdoor applications, this retrofit solution is perfect for commercial and industrial settings, ensuring energy savings by automatically switching lights based on presence detection. With a maximum reach of 8 meters and programmable lux levels, it offers versatility and ease of installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PIR Presence Detector | IP65 Rated | 360° Detection Angle | Easy Retrofit | @Each of 1 | by CP Electronics
Brand: CP Electronics
SKU: EBMPIR-MB-PRM
Alternatively Known As: PIR Presence Detector, Batten Mount PIR Sensor, Retrofit PIR Detector, IP65 PIR Motion Sensor
Technical Specifications
- Presence detector technology: Passive infrared
- Constant light control: Yes
- Forced switch off: Yes
- Optimum mounting height: 7 m
- Max. reach sideways: 8 m
- Max. reach frontally: 8 m
- Diameter reach on floor: 16 m
- Response value luminosity adjustable: Yes
- Switch-off delay: 10 s
- Switching-on delay: 1 s
- Detection angle horizontal: 360°
- Max. switching power: 460 W
- Nominal voltage: 230 V AC
- Frequency: 50 Hz
- Degree of protection: IP65
- Impact strength: IK05
- Material: Thermoplastic, halogen free
- Colour: White (RAL 9002)
- Operating temperature: -10 to 35 °C
- Standby consumption: 3.5 mA
- Mandatory neutral connection required
- Dimensions (H x L x W): 28mm x 144mm x 33mm
- Weight: 0.1 kg
Key Features
- Batten mount retrofit system for easy installation
- Integrated unit with no separate power supply required
- IP65 rated for outdoor and wet area suitability
- Movement detection up to 7 metres high
- Suitable for a wide range of luminaires
- Pre-wired with 1m cable length
- Switching with lux level sensing
- Programmable via handset for on/off and lux levels
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and optimal sensor performance.
Applications
- Retrofit upgrades for existing batten style luminaires
- Indoor and outdoor lighting control in wet and wash-down areas
- Automatic lighting control in commercial and industrial buildings
- Staircase lighting control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically switching lighting based on presence detection
- Helps lower carbon footprint through efficient lighting control
- IP65 rating ensures durability and longevity, reducing waste from replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to CP Electronics for specific warranty terms.
Available Now
The CP Electronics PRM Switching Miniature Retrofit IP65 Ceiling Luminaire Mounted PIR Presence Detector is available for immediate purchase, ideal for retrofit lighting control in commercial and industrial applications.
