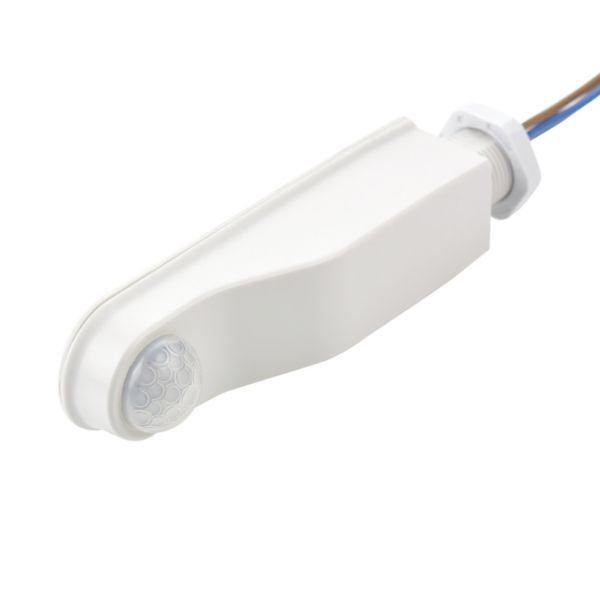

PIR Presence Detector | IP65 Rated | 360° Detection Angle | Retrofit System | @Each of 1 | by CP Electronics
The PIR Presence Detector is an IP65-rated solution designed for retrofit upgrades in both indoor and outdoor settings. With a 360° detection angle and movement detection up to 7 meters high, it ensures efficient lighting control in commercial and industrial environments. Built with halogen-free thermoplastic, this detector features constant light control and forced switch-off functions, making it ideal for energy-saving applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PIR Presence Detector | IP65 Rated | 360° Detection Angle | Retrofit System | @Each of 1 | by CP Electronics
Brand: CP Electronics
SKU: EBMPIR-MB-B-BP
Alternatively Known As: PIR Presence Detector, Ceiling Mounted PIR Sensor, Batten PIR Detector, Retrofit PIR Sensor, IP65 PIR Motion Sensor
Technical Specifications
- Movement sensor technology: Passive infrared
- Constant light control: Yes
- Forced switch off: Yes
- Optimum mounting height: 2.8 m
- Max. reach sideways: 3 m
- Max. reach frontally: 24 m
- Response value luminosity: 0-2000 lx adjustable
- Max. switching power: 2300 W
- Nominal voltage: 230 V AC
- Frequency: 50 Hz
- Detection angle horizontal: 360°
- Standby consumption: 3.52 mA
- Terminal capacity: 2.5 mm²
- Material: Halogen free thermoplastic
- Degree of protection: IP40
- Impact strength: IK05
- Operating temperature: -10 to 30 °C
- Dimensions (H x L x W): 85mm x 95.5mm x 85mm
- Weight: 0.15 kg
Key Features
- Batten mount retrofit system for easy installation
- Integrated unit with no separate power supply required
- IP65 rated for outdoor and wet area suitability
- Movement detection up to 7 metres high
- Suitable for a wide range of luminaires
- Pre-wired with 1m cable length
- Comprehensive fitting kit included
- Constant light control and forced switch off functions
- Response value sensitivity and luminosity adjustable
- Remote operation with supplied remote control
- Halogen free thermoplastic material with matt finish
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety regulations.
Applications
- Retrofit upgrades for existing batten style luminaires
- Indoor and outdoor lighting control in wet and wash-down areas
- Automatic lighting control in commercial and industrial buildings
- Staircase lighting control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Automatic lighting control reduces energy consumption by switching lights off when areas are unoccupied
- IP65 rating ensures durability and longevity in harsh environments, reducing waste
- Halogen free materials contribute to safer disposal and lower environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to CP Electronics for specific warranty terms.
Available Now
The CP Electronics Basic Switching Miniature Retrofit IP65 Ceiling Luminaire Mounted PIR Presence Detector is available for immediate purchase, ideal for retrofit lighting control in commercial and industrial environments.
