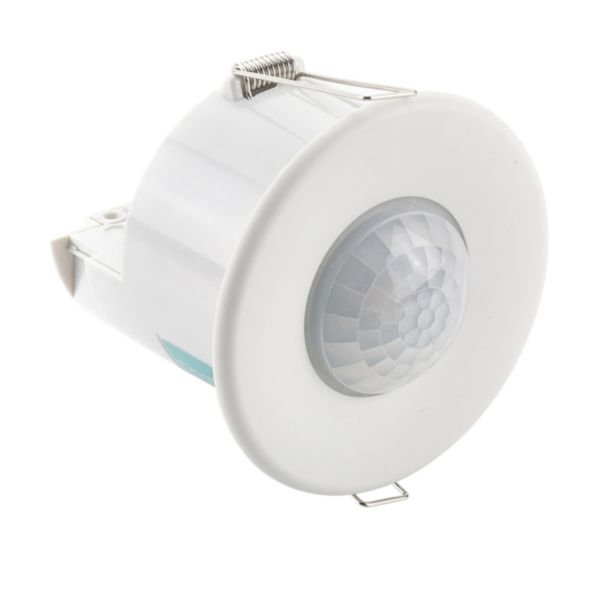

PIR Presence Detector | Mid Range Detection | IP40 Rated | Flush Mounted Design | @Each of 1 | by CP Electronics
The PIR Presence Detector is designed for efficient lighting control in open plan spaces, featuring mid-range detection with a 360° horizontal angle and IP40 protection. Ideal for commercial and office environments, this sensor helps reduce energy consumption by automatically adjusting lighting based on presence and ambient light levels, ensuring optimal performance and energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PIR Presence Detector | Mid Range Detection | IP40 Rated | Flush Mounted Design | @Each of 1 | by CP Electronics
Brand: CP Electronics
SKU: EBDMR-PRM
Alternatively Known As: PIR Presence Detector, Ceiling Mounted PIR Sensor, Flush Mounted Occupancy Sensor, Mid Range PIR Detector
Technical Specifications
- Movement sensor technology: Passive infrared
- Constant light control: Yes
- Forced switch off: Yes
- Optimum mounting height: 2.8 m
- Max reach sideways: 7.5 m
- Max reach frontally: 7.5 m
- Diameter reach on floor: 15 m
- Response value luminosity: 0-2000 lx
- Max switching power: 2300 W
- Nominal voltage: 230 V AC
- Frequency: 50 Hz
- Switch-off delay: 10 s
- Switching-on delay: 1 s
- Detection angle horizontal: 360°
- Degree of protection: IP40
- Impact strength: IK05
- Material: Halogen free thermoplastic
- Colour: White (RAL 9002)
- Standby consumption: 3.65 mA
- Mandatory neutral required
- Terminals capacity: 2.5 mm²
- Dimensions (H x L x W): 76mm x 77mm x 76mm
- Weight: 0.1 kg
Key Features
- Mid-range PIR detector with superior detection pattern using high performance faceted lens
- Switching with lux level sensing
- Programmable via programming handset
- Absence detection functionality
- Remote operation with supplied remote control
- Adjustable response value sensitivity and luminosity
- Flush-mounted design with IP40 protection
- Halogen free thermoplastic material with matt white finish
- 360° horizontal detection angle
- Max switching power 2300 W
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal sensor performance.
Applications
- Open plan spaces requiring presence or absence detection
- Ceiling flush mounted installations in commercial and office environments
- Lighting control for energy efficiency and automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps reduce energy consumption by automatically controlling lighting based on presence and ambient light levels
- Supports energy-efficient building management and reduces unnecessary power usage
Warranty Information
Standard manufacturer warranty applies. Please refer to CP Electronics for specific warranty terms.
Available Now
The CP Electronics PRM Switching Compact Mid Range IP40 Ceiling Flush Mounted PIR Presence/Absence Detector is available for immediate purchase, ideal for commercial and office lighting control applications.
