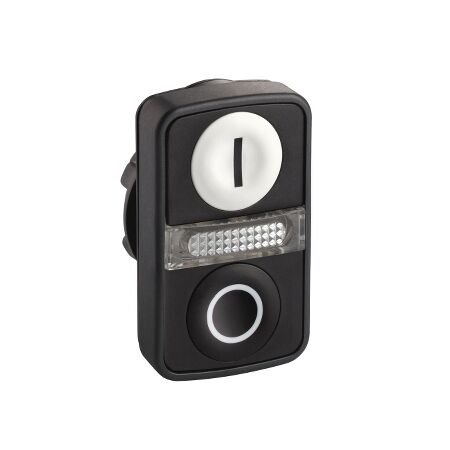

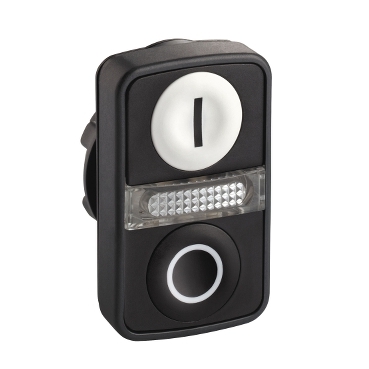

Plastic Double Headed Pushbutton | Illuminated Pilot Light | 22mm Mounting | by Clipsal
The Plastic Double Headed Pushbutton is designed for industrial control panels and automation systems, featuring an illuminated pilot light for easy visibility. With a durable plastic construction and a 22mm mounting diameter, this pushbutton ensures reliable performance in machinery start/stop applications, making it ideal for electricians and engineers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Plastic Double Headed Pushbutton | Illuminated Pilot Light | 22mm Mounting | by Clipsal
Brand: Clipsal
SKU: SCHZB5AW7A1721
Alternatively Known As: ['Double headed pushbutton', 'Illuminated push button switch', 'Clipsal XB5 double pushbutton', 'Start stop pushbutton', 'SCHZB5AW7A1721']
Technical Specifications
- Mounting diameter: 22mm
- Material: Plastic
- Button colors: 1 white (marked I), 1 black (marked O)
- Illumination: Integrated pilot light
- Markings: I (ON), O (OFF)
- Series: Harmony XB5
- Degree of protection: IP66 (front face)
- Operating temperature: -40°C to +70°C
- Mechanical durability: 10,000,000 cycles
- Dimensions (H x L x W): 50mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Double headed pushbutton with illuminated pilot light
- 22mm diameter mounting
- 1 white flush button marked 'I' (ON)
- 1 black flush button marked 'O' (OFF)
- Plastic construction for durability and insulation
- Harmony XB5 series for reliable performance
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery start/stop stations
- Automation systems
- Manufacturing equipment
- Electrical control cabinets
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable plastic construction reduces need for frequent replacements
- Energy-efficient LED illumination for pilot light
- RoHS compliant materials minimize environmental impact
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Harmony XB5 Plastic Double Headed Pushbutton SCHZB5AW7A1721 is available for immediate purchase. Ideal for industrial control panels, automation systems, and machinery start/stop applications.
