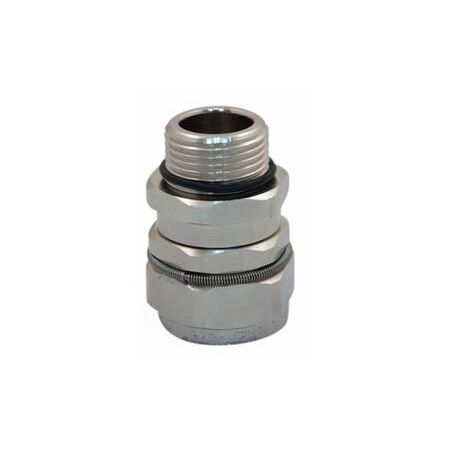

Pliable Straight Connector IP68 Rated Nickel-Plated Brass Cabac
Cabac Pliable Straight Connector IP68 Rated & Swivel Male Thread features nickel-plated brass finish. Suited for AS NZS 2053 conduit installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connector body material: Nickel-plated brass
- Sealing rings (x2): Nylon 66
- Spring washer (x1): Steel
- Working temperature range: -60°C to +200°C (with silicone O-ring seals)
- Ingress Protection: IP68
- Impact resistance tested to IEC 61386 standards
- Compression resistance suitable for heavy-duty installations
- Dimensions (H x L x W): 15mm x 40mm x 40mm
- Weight: 0.1 kg
Key Features
- Designed for use with CABFLX SSP stainless steel conduit
- Swivel male thread for ease of installation
- IP68 rated for superior dust and water ingress protection
- Halogen-free construction for high safety standards
- Resistant to mechanical impact and compression
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure proper sealing and mechanical protection.
Applications
- Industrial and outdoor installations requiring protection from mechanical damage
- Corrosive environments or high-temperature applications
- Areas where halogen-free materials are mandatory
- Electrical or communication installations needing reliable sealing and impact resistance
Standards & Compliance
- Complies with AS/NZS 61386 for conduit systems (aligned with IEC 61386-1 and IEC 61386-22)
Environmental Benefits
- Halogen-free construction reduces harmful emissions in case of fire
- Durable materials extend product life, reducing waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
The Cabac Pliable Straight Brass Connector 40mm is available for immediate purchase. Ideal for industrial, outdoor, and high-temperature conduit installations.
FAQ
Q: What conduit is this 40mm brass connector designed for?
A: It is designed for use with CABFLX SSP stainless steel conduit in industrial, outdoor, and high-temperature conduit installations.
Q: Does this connector provide protection against dust, water, and mechanical impact?
A: Yes. It features an IP68 ingress protection rating, is tested to IEC 61386 standards, and complies with AS/NZS 61386 for conduit systems.
