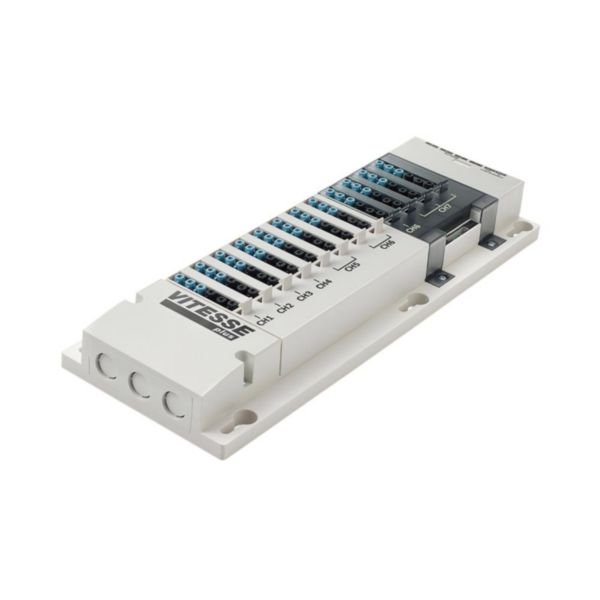

CP Electronics Pluggable LCM 7 x DALI/DSI | 12 Outputs | Supports DALI/DSI | Energy-Saving Features | @EA of 1 | by CP Electronics
The CP Electronics Pluggable LCM 7 x DALI/DSI is designed for versatile lighting control with 12 outputs and 7 channels, supporting both DALI and DSI digital dimming protocols. Ideal for commercial, retail, and educational applications, it features energy-saving capabilities like graduated dimming and absence recovery, ensuring efficient lighting management while minimizing unnecessary power usage.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CP Electronics Pluggable LCM 7 x DALI/DSI | 12 Outputs | Supports DALI/DSI | Energy-Saving Features | @EA of 1 | by CP Electronics
Brand: CP Electronics
SKU: VITP7-MB-DD
Alternatively Known As: Vitesse Plus LCM 7 Channel DALI Dimming Controller, CP Electronics Digital Lighting Controller, Pluggable Lighting Control Module
Technical Specifications
- 7 channels with 12 pluggable 6-pole outputs
- Supports DALI and DSI digital dimming protocols
- Four RJ45 inputs for detectors and scene plates
- SELV connections for up to 5 centre biased retractive switches and one keyswitch
- Supports up to 4 detectors including mid-range and long-range microwave and PIR detectors
- Corridor hold function via 2 core cable linking
- Switch detection time: lights switch off 10 seconds after no movement detected
- Absence recovery: temporary presence mode for 10 seconds after timeout
- Dimensions (H x L x W): 60mm x 200mm x 300mm
- Weight: 1.2 kg
Key Features
- 12 outputs and 7 channels for versatile lighting control
- Supports DALI or DSI digital dimming
- Four RJ45 inputs for detectors and scene plates
- SELV switching for safety
- Graduated dimming functionality to maximize daylight use
- Absence recovery feature to save energy
- Switch detection time to minimize unnecessary lighting
- Corridor hold function via simple linking
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with DALI/DSI lighting control systems to ensure compliance with electrical standards and optimal system performance.
Applications
- Commercial lighting control
- Retail lighting management
- Educational facility lighting
- Energy-efficient lighting systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Graduated dimming reduces energy consumption by adjusting lighting based on natural light levels
- Absence recovery and switch detection minimize unnecessary lighting, lowering power usage
- Supports energy-saving lighting control strategies in commercial and educational buildings
Warranty Information
3 years warranty against manufacturing defects.
Available Now
The CP Electronics Pluggable LCM 7 x DALI/DSI Digital Dimming Channels is available for immediate purchase, ideal for commercial, retail, and educational lighting control applications.
