Trade Discount 17%
Power Inserter 60V 2A | 5-2400MHz | Wideband F-Type by Matchmaster
Power inserter with 60V input and 2A output—ideal for telecommunications and broadcasting. Built for reliable power delivery, with wideband frequency range and F-Type connectors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

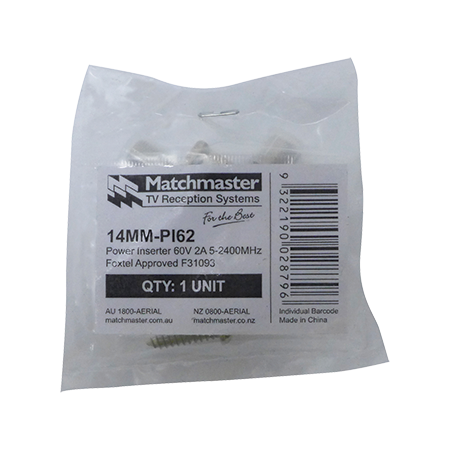

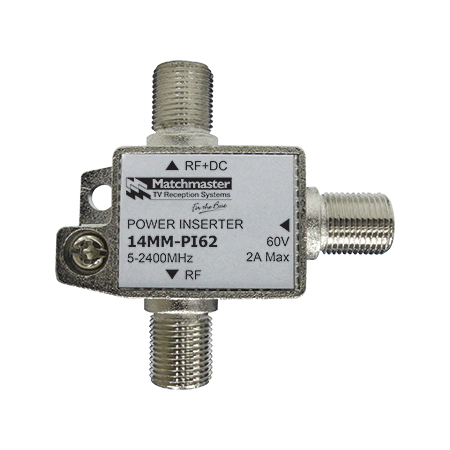

Product Name/Title: 60V 2A 5-2400MHz Power Inserter
Brand: Matchmaster
SKU: 14MM-PI62
Alternatively Known As: Power Inserter 60V 2A, Foxtel Power Inserter, Coaxial Power Inserter
Technical Specifications
- Power Supply: 60VDC @ 2A
- Frequency Range: 40 - 2400MHz
- Insertion Loss: ≤1.0 dB
- Housing: Zinc die cast, nickel-plated
- Foxtel Approval: F31093
- Dimensions (H x L x W): 40mm x 60mm x 100mm
- Weight: 0.3 kg
Key Features
- Maximum power supply of 60VDC @ 2 amp
- Can be used to remotely power multiswitches and active taps
- Foxtel approved (F31093)
- Frequency range 40 - 2400MHz
- Low insertion loss ≤1.0 dB
- Zinc die cast housing, nickel-plated
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure proper integration with Foxtel systems and safety compliance.
Applications
- Use with Foxtel Active taps and multiswitches
- Insertion into coaxial line at any point in the network
- Remote powering of multiswitches and active taps
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enables efficient remote powering reducing the need for additional power cables
- Durable zinc die cast housing extends product lifespan reducing waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Matchmaster 60V 2A 5-2400MHz Power Inserter is available now for immediate purchase. Ideal for use in Foxtel network installations requiring remote powering of active taps and multiswitches.
